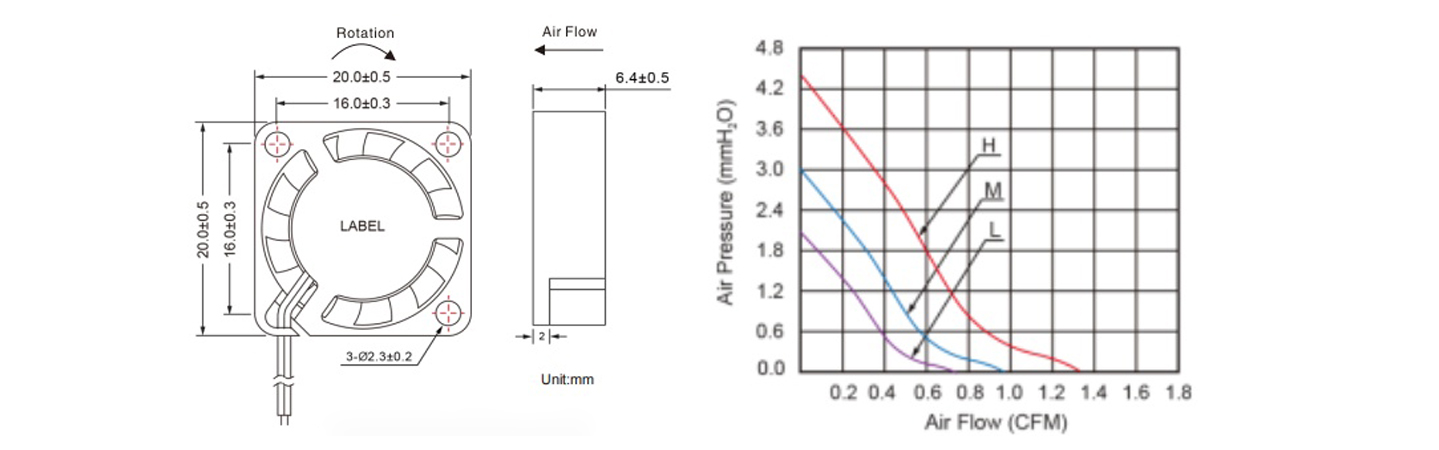

| Size: | 20*20*6mm |
| Motor: | DC brushless fan motor |
| Bearing: | Hydraulic |
| Weight: | 2.5g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Auto restart | |
| 3.Waterproof Level |
Item code: DC2006
Housing: Thermoplastic PBT,UL94V-0
Impeller: Thermoplastic PBT,UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -10℃ to +70℃，35%-85%RH for Sleeve Type
-20℃ to +80℃，35%-85%RH for Ball Type
| Model | Rated Voltage | Operation Voltage | Power | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | W | A | RPM | CFM | MmH2O | dBA | |
| AM2006L3H | 3.3 | 3.0-5.5 | 0.30 | 0.09 | 8500 | 0.70 | 2.00 | 20 |
| AM2006M3H | 0.36 | 0.11 | 12000 | 0.90 | 3.00 | 24 | ||
| AM2006M3H | 0.63 | 0.19 | 15000 | 1.30 | 4.30 | 29 | ||
| AM2006L5H | 5.0 | 3.0-5.5 | 0.25 | 0.05 | 8500 | 0.70 | 2.00 | 20 |
| AM2006M5H | 0.50 | 0.10 | 12000 | 0.90 | 3.00 | 24 | ||
| AM2006H5H | 0.60 | 0.12 | 15000 | 1.30 | 4.30 | 29 | ||
