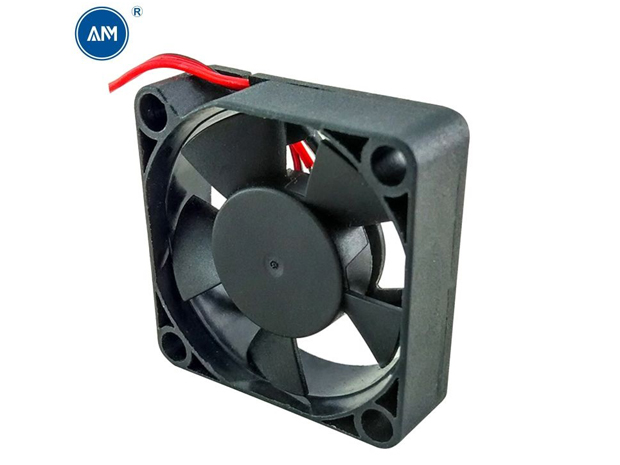

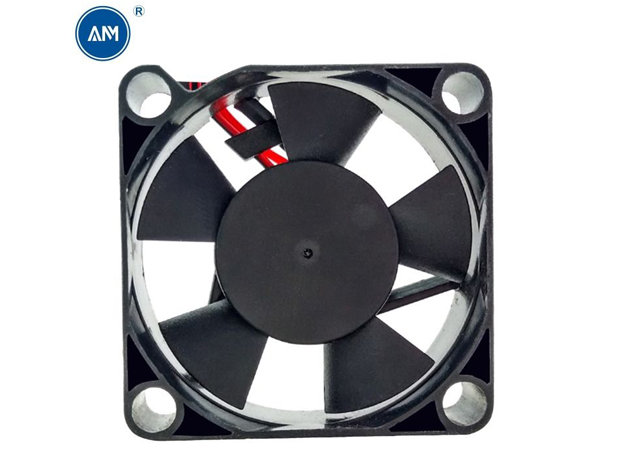

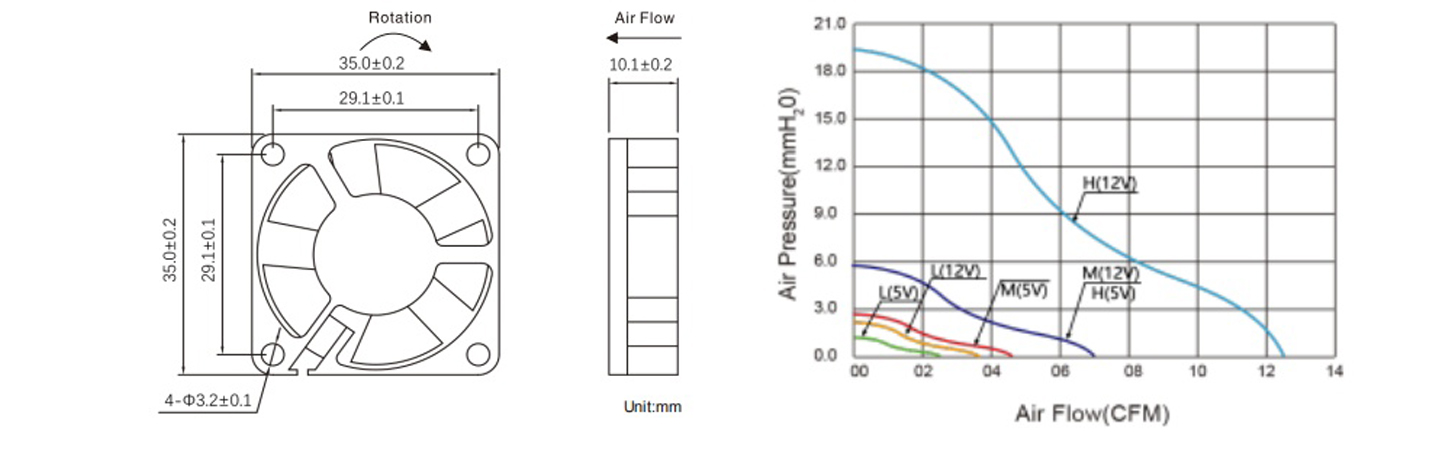

| Size: | 35*35*10mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve |
| Weight: | 10g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Polarity protection. | |
| 3.Waterproof Level |
Item code: DC3510
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow, “PWM” Blue
Operating Temperature: -10℃ to +70℃，35%-85%RH for Sleeve Type
-20℃ to +80℃，35%-85%RH for Ball Type
| Model | Rated Voltage | Operation Voltage | Power | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | W | A | RPM | CFM | MmH2O | dBA | |
| AM3510L5B(S) | 5.0 | 3.0-5.5 | 0.50 | 0.10 | 5000 | 4.00 | 1.50 | 22 |
| AM3510M5B(S) | 0.80 | 0.16 | 6000 | 4.80 | 2.00 | 25 | ||
| AM3510H5B(S) | 1.00 | 0.20 | 7000 | 5.80 | 2.80 | 29 | ||

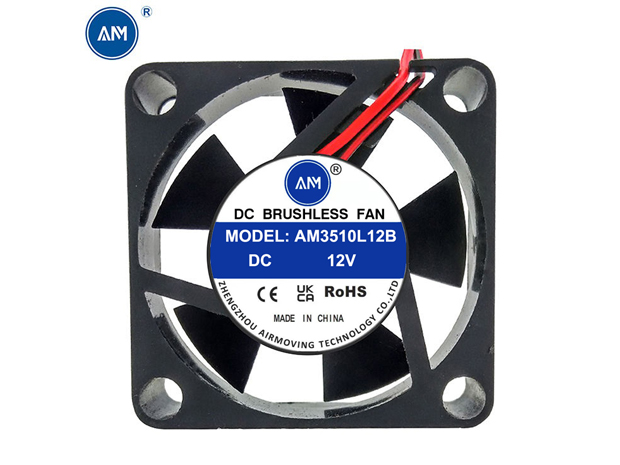

| AM3510L12B(S) | 12.0 | 6.0-13.8 | 0.48 | 0.04 | 5000 | 4.00 | 1.50 | 23 |
| AM3510M12B(S) | 1.20 | 0.10 | 6000 | 4.80 | 2.00 | 25 | ||
| AM3510H12B(S) | 1.44 | 0.12 | 7000 | 5.80 | 2.80 | 29 |
