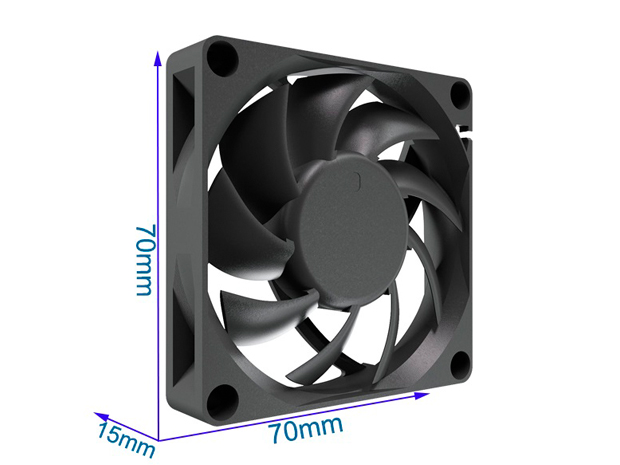

| Size: | 70*70*15mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve or Hydraulic |
| Weight: | 43g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Auto restart | |
| 3.Waterproof Level |

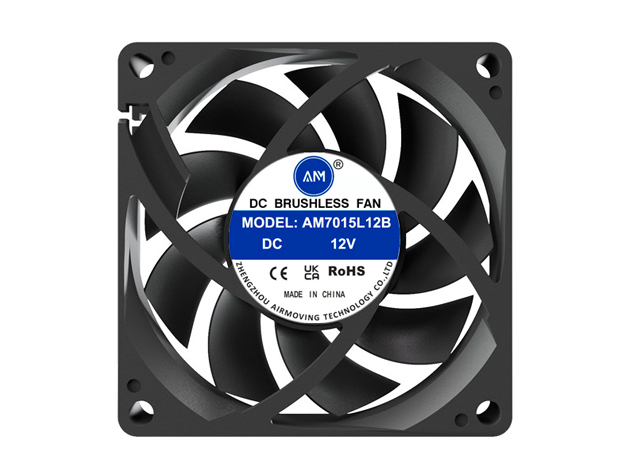

Item code: DC7015
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -10℃ to +70℃，35%-85%RH for Sleeve Type
-20℃ to +80℃，35%-85%RH for Ball Type

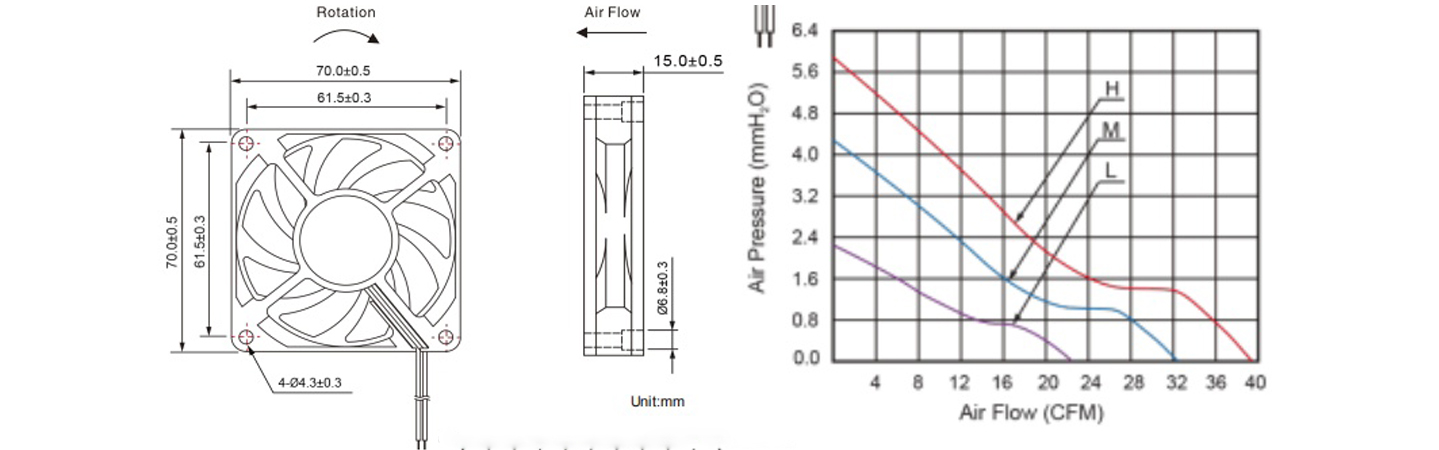

| Model | Rated Voltage | Operation Voltage | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | Amp | RPM | CFM | MmH2O | dBA | |
| AM7015L12B(S/H) | 12.0 | 6.0-13.8 | 0.08 | 3000 | 22.2 | 2.2 | 28.0 |
| AM7015M12B(S/H) | 0.21 | 4000 | 32.5 | 4.3 | 36.0 | ||
| AM7015H12B(S/H) | 0.3 | 5000 | 39.0 | 5.9 | 45.0 | ||
| AM7015L24B(S/H) | 24.0 | 12.0-27.0 | 0.05 | 3000 | 22.2 | 2.2 | 28.0 |
| AM7015M24B(S/H) | 0.10 | 4000 | 32.5 | 4.3 | 36.0 | ||
| AM7015H24B(S/H) | 0.20 | 5000 | 39.0 | 5.9 | 45.0 |
