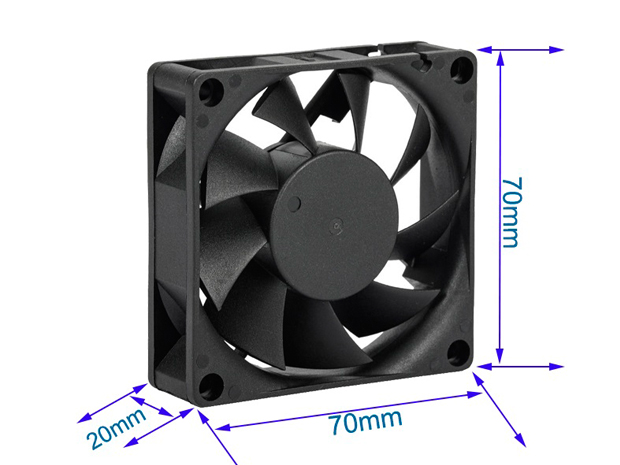

| Size: | 70*70*20mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve |
| Weight: | 60g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Auto restart | |
| 3.Waterproof Level |
Item code: DC7020
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -10℃ to +70℃，35%-85%RH for Sleeve Type
-20℃ to +80℃，35%-85%RH for Ball Type

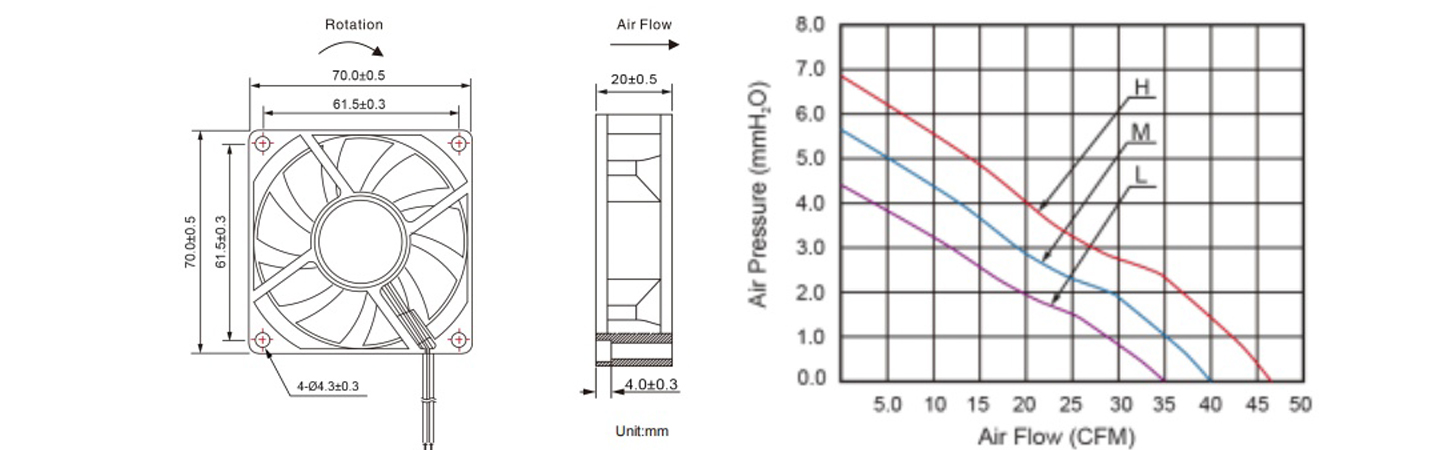

| Model | Rated Voltage | Operation Voltage | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | Amp | RPM | CFM | MmH2O | dBA | |

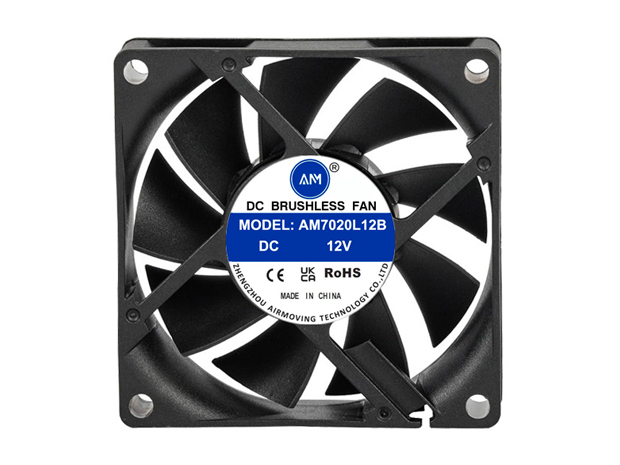

| AM7020L12B(S/H) | 12.0 | 6.0-13.8 | 0.18 | 3800 | 35.0 | 4.3 | 35 |
| AM7020M12B(S/H) | 0.25 | 4400 | 40.0 | 5.6 | 39 | ||
| AM7020H12B(S/H) | 0.35 | 5000 | 46.4 | 6.8 | 43 | ||
| AM7020L24B(S/H) | 24.0 | 12.0-27.0 | 0.15 | 3800 | 35.0 | 4.3 | 35 |
| AM7020M24B(S/H) | 0.20 | 4400 | 40.0 | 5.6 | 39 | ||
| AM7020H24B(S/H) | 0.25 | 5000 | 46.0 | 6.8 | 43 |
