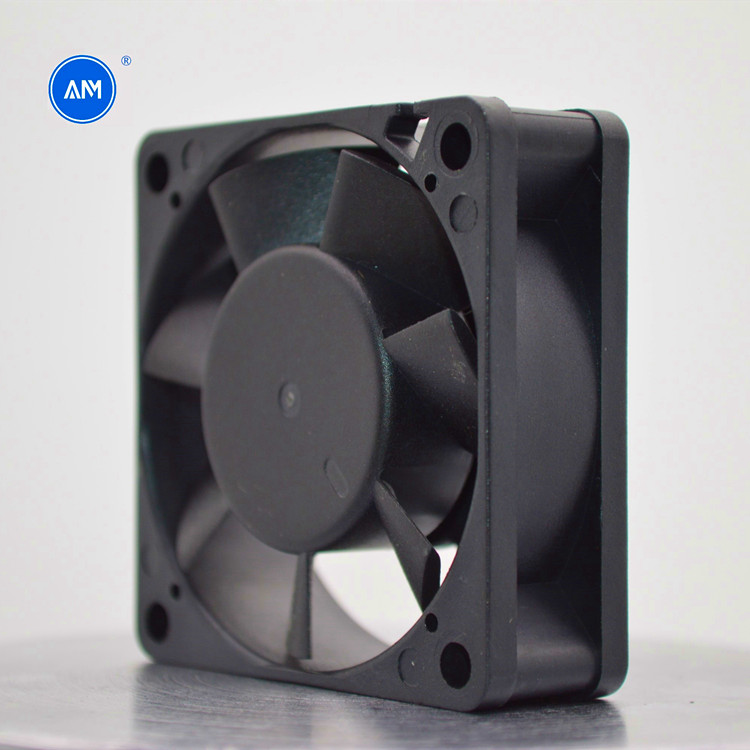

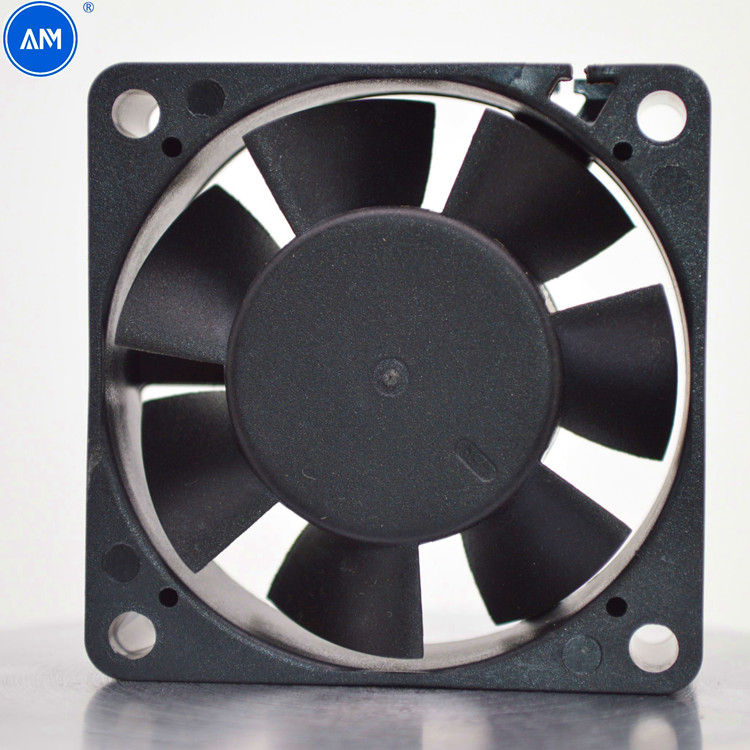

DC 6020

Size: 60*60*20mm
Motor: DC brushless fan motor
Bearing: Ball, Sleeve or Hydraulic
Weight: 48g
No. of Pole: 4 Poles
Rotating Direction: Counter-Clockwise
Optional Function: 1.Lock Protection
2.Auto restart
3.Waterproof Level
Technical characteristics

Item code: DC6020

Housing: Thermoplastic PBT, UL94V-0

Impeller: Thermoplastic PBT, UL94V-0

Lead Wire: UL 1007 AWG#24
                   “+” Red,“-” Black

Optional wire: “Sensor” Yellow,“PWM” Blue

Operating Temperature: -10℃ to +70℃,35%-85%RH for Sleeve Type
                                        -20℃ to +80℃,35%-85%RH for Ball Type

Performance Parameter
Model Rated Voltage Operation Voltage Power Rated Current Rated Speed Air Flow Air Pressure Noise Level
V DC V DC W A RPM CFM MmH2O dBA
AM6020H5 5.0 4.5-5.5 1.75 0.35 5000 24.4 6.5 38
AM6020M5 1.25 0.25 4000 20.1 4.3 32
AM6020L5 0.75 0.15 3000 15.1 2.4 24
AM6020H12 12.0 6.0-13.8 3.00 0.25 5000 24.4 6.5 38
AM6020M12 2.16 0.18 4000 20.1 4.3 32
AM6020L12 1.20 0.10 3000 15.1 2.4 24
AM6020H24 24.0 12.0-27.6 3.60 0.15 5000 24.4 6.5 38
AM6020M24 2.88 0.12 4000 20.1 4.3 32
AM6020L24 2.40 0.10 3000 15.1 2.4 24
