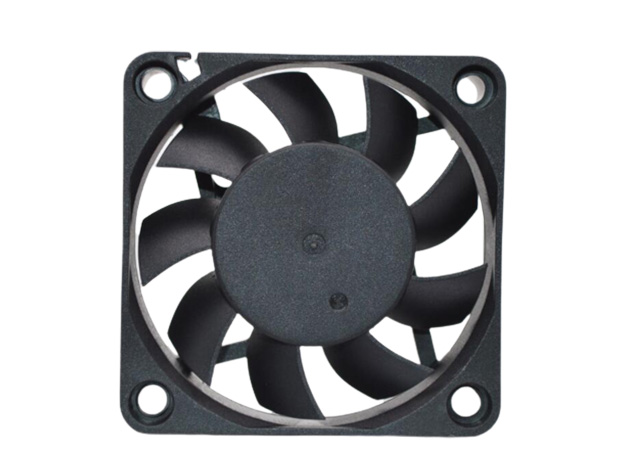

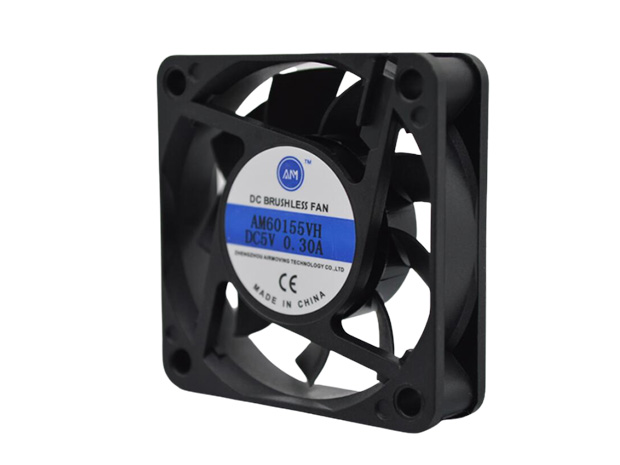

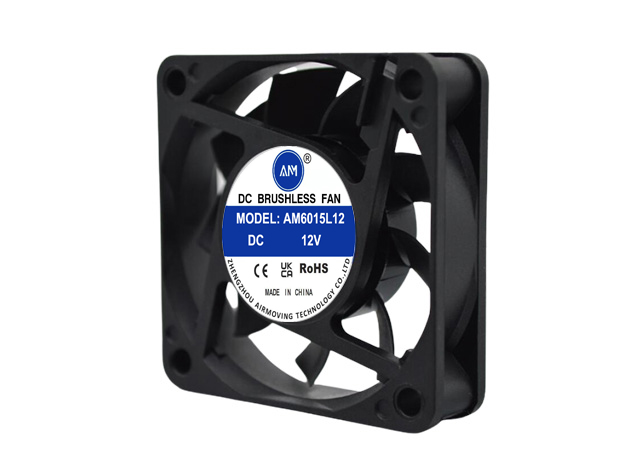

DC6015

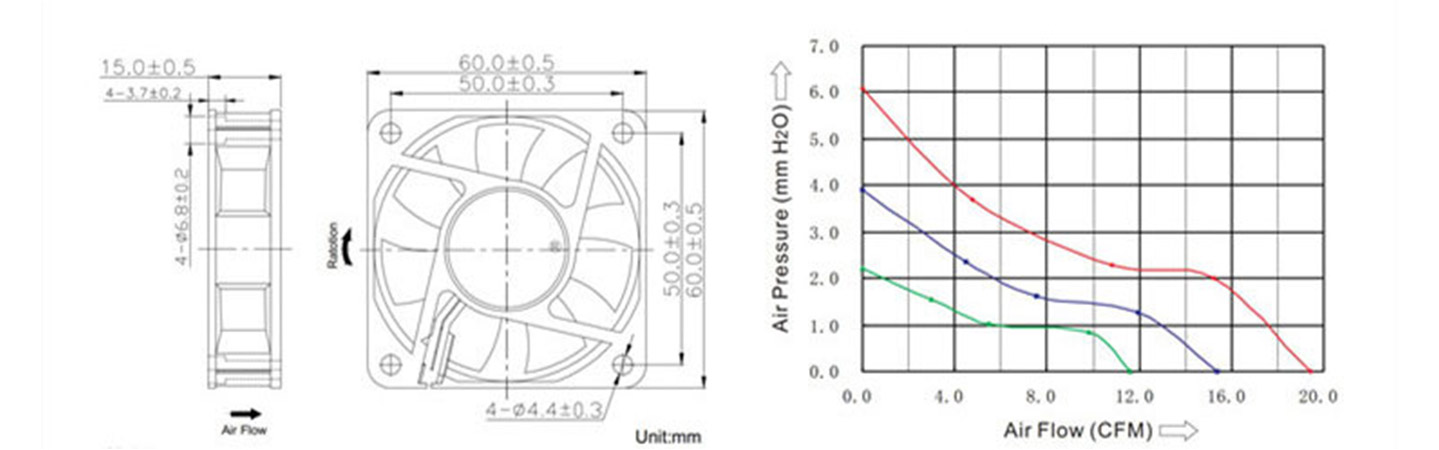

Size: 60*60*15mm
Motor: DC brushless fan motor
Bearing: Ball, Sleeve or Hydraulic
Weight: 31g
No. of Pole: 4 Poles
Rotating Direction: Counter-Clockwise
Optional Function: 1.Lock Protection
2.Auto restart
3.Waterproof Level
Technical characteristics

Item code: DC6015

Housing: Thermoplastic PBT, UL94V-0

Impeller: Thermoplastic PBT, UL94V-0

Lead Wire: UL 1007 AWG#24
                   “+” Red,“-” Black

Optional wire: “Sensor” Yellow,“PWM” Blue

Operating Temperature: -10℃ to +70℃,35%-85%RH for Sleeve Type
                                        -20℃ to +80℃,35%-85%RH for Ball Type


Performance Parameter
Model Rated Voltage Operation Voltage Power Rated Current Rated Speed Air Flow Air Pressure Noise Level
V DC V DC W A RPM CFM MmH2O dBA
AM6010H5 5.0 4.5-5.5 1.50 0.30 4000 15.4 3.9 32
AM6010M5 1.00 0.20 3500 13.5 3.1 29
AM6010L5 0.65 0.13 3000 11.6 2.2 24
AM6010H12 12.0 6.0-13.8 3.36 0.28 5000 19.4 6.1 37
AM6010M12 2.16 0.18 4000 15.4 3.9 32
AM6010L12 1.20 0.10 3000 11.6 2.2 24
AM6010H24 24.0 12.0-27.6 3.60 0.15 5000 19.4 6.1 37
AM6010M24 2.40 0.10 4000 15.4 3.9 32
AM6010L24 1.44 0.06 3000 11.6 2.2 24
