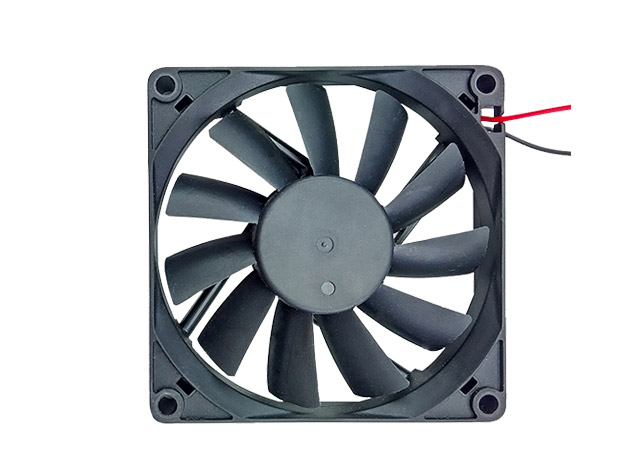

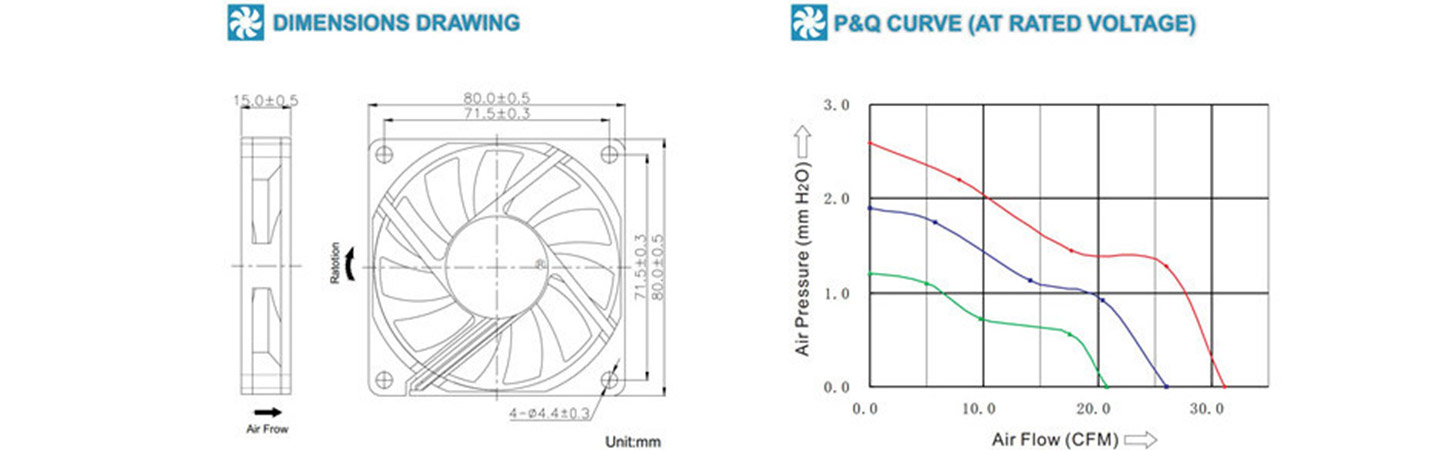

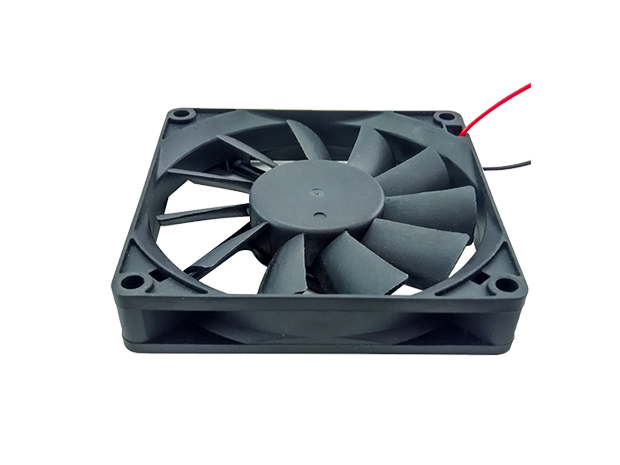

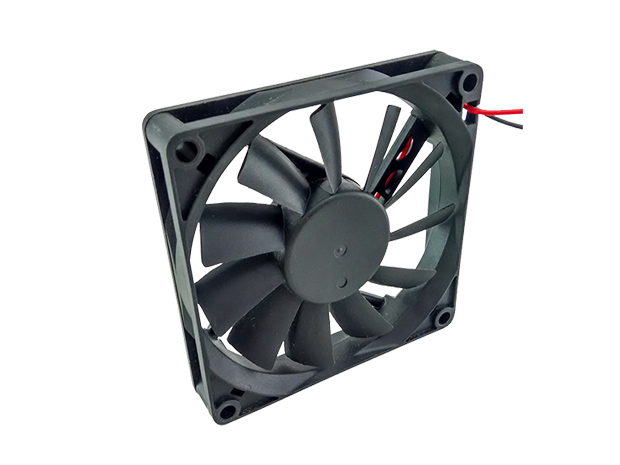

| Size: | 80*80*15mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve |
| Weight: | 54g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Auto restart | |
| 3.Waterproof Level |
Item code: DC8015
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -10℃ to +70℃，35%-85%RH for Sleeve Type
-20℃ to +80℃，35%-85%RH for Ball Type
| Model | Rated Voltage | Operation Voltage | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | Amp | RPM | CFM | MmH2O | dBA | |
| AM8015L5B(S) | 5 | 3.0-5.5 | 0.13 | 2000 | 21 | 1.2 | 23 |
| AM8015M5B(S) | 0.29 | 2500 | 28.2 | 1.8 | 29 | ||
| AM8015H5B(S) | 0.4 | 3000 | 33 | 2.4 | 33 | ||
| AM8015L12B(S) | 12 | 6.0-13.8 | 0.12 | 2000 | 28.2 | 1.8 | 29 |
| AM8015M12(S) | 0.22 | 2500 | 33 | 2.4 | 33 | ||
| AM8015H12(S) | 0.3 | 3000 | 37.2 | 3.0 | 35 | ||
| AM8015L24B(S) | 24 | 12.0-27.0 | 0.10 | 2000 | 20.8 | 1.2 | 25 |
| AM8015M24B(S) | 0.13 | 2500 | 26.0 | 1.9 | 30 | ||
| AM8015H24B(S) | 0.15 | 3000 | 31.2 | 2.6 | 35 |
