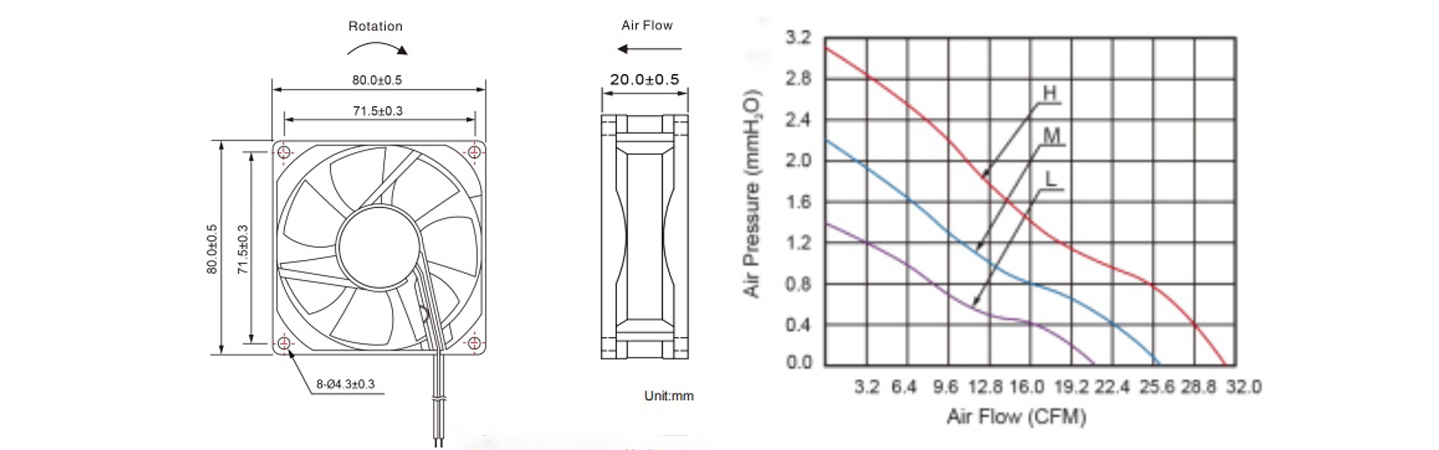

| Size: | 80*80*20mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve or Hydraulic |
| Weight: | 55g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Auto restart | |
| 3.Waterproof Level |

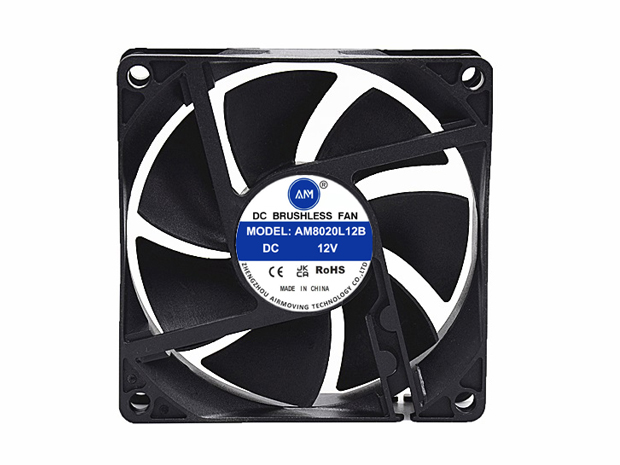

Item code: DC8020
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -10℃ to +70℃，35%-85%RH for Sleeve Type
-20℃ to +80℃，35%-85%RH for Ball Type
| Model | Rated Voltage | Operation Voltage | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | Amp | RPM | CFM | MmH2O | dBA | |
| AM8020L5B(S/H) | 5 | 3.0-5.5 | 0.1 | 2000 | 21.6 | 1.5 | 22.5 |
| AM8020M5B(S/H) | 0.13 | 2500 | 25.8 | 2.2 | 30.0 | ||
| AM8020H5B(S/H) | 0.48 | 3000 | 31.3 | 3.15 | 34.0 | ||
| AM8020L12B(S/H) | 12 | 6.0-13.8 | 0.08 | 2000 | 21.6 | 1.5 | 22.5 |
| AM8020M12B(S/H) | 0.11 | 2500 | 25.8 | 2.2 | 30.0 | ||
| AM8020H12B(S/H) | 0.18 | 3000 | 31.3 | 3.15 | 34.0 | ||
| AM8020L24B(S/H) | 24 | 12.0-27.0 | 0.12 | 2500 | 30.5 | 4.05 | 26.0 |
| AM8020L24B(S/H) | 0.14 | 3000 | 36.3 | 5.35 | 32.0 | ||
| AM8020L24B(S/H) | 0.21 | 3500 | 41.3 | 7.61 | 38.0 |
