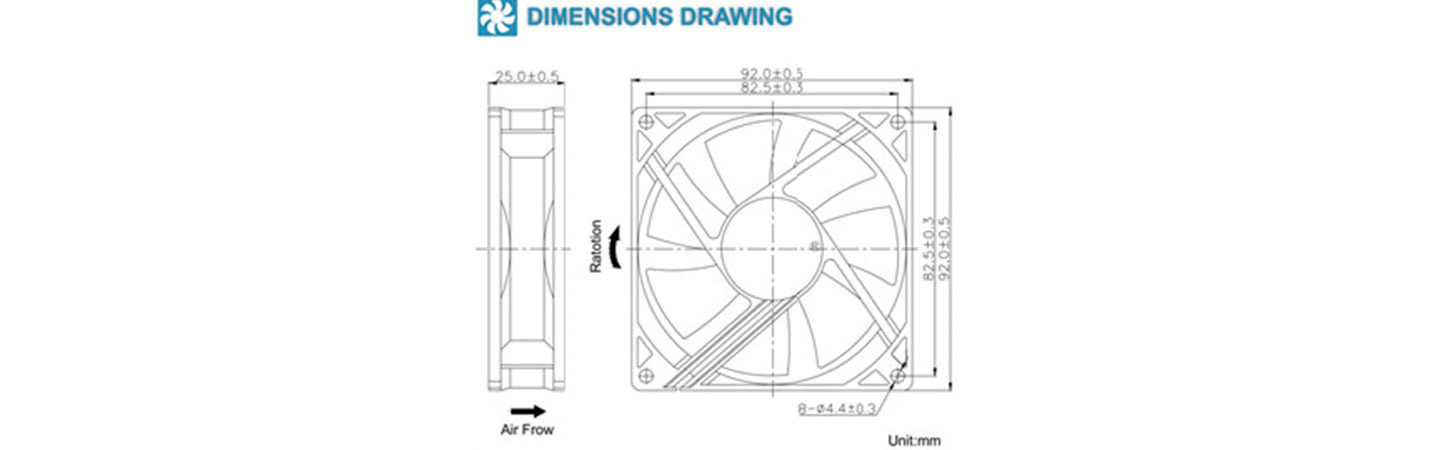

| Size: | 92*92*25mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve or Hydraulic |
| Weight: | 94g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Auto restart | |
| 3.Waterproof Level |
Item code: DC 9225 Bi-Voltage (Dual voltage)
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow,“PWM” Blue
Available Option: -20℃ to +80℃ for Ball Type
| Model | Rated Voltage | Operation Voltage | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | A | RPM | CFM | MmH2O | dBA | |
| AM9225BM1 | 12-24V | 12V | 0.22 | 2500 | 49.4 | 2.7 | 32 |
| 24V | 0.27 | 3500 | 66.2 | 5.1 | 39 |
