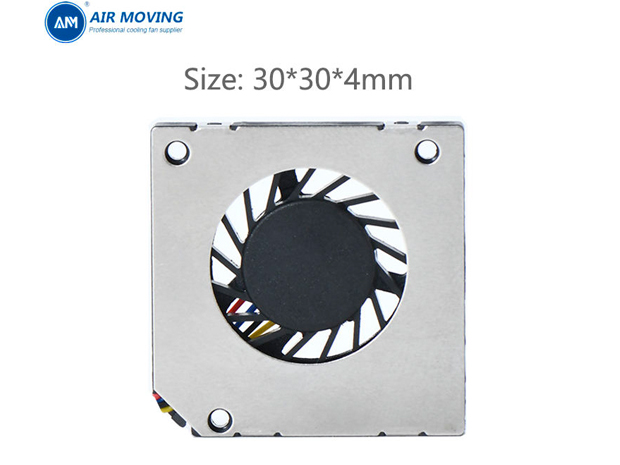

| Size: | 30*30*4mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve |
| Weight: | 5g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |

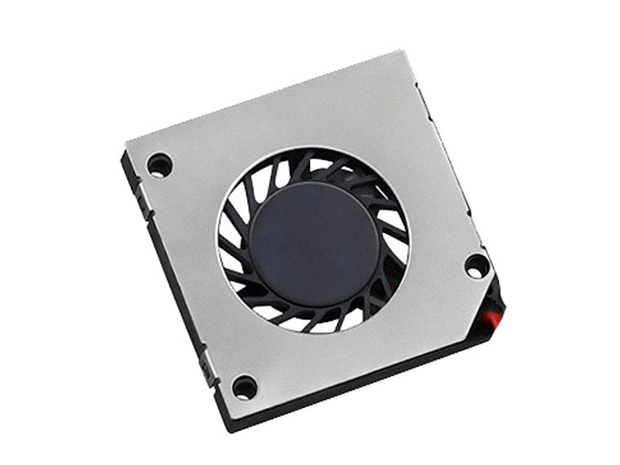

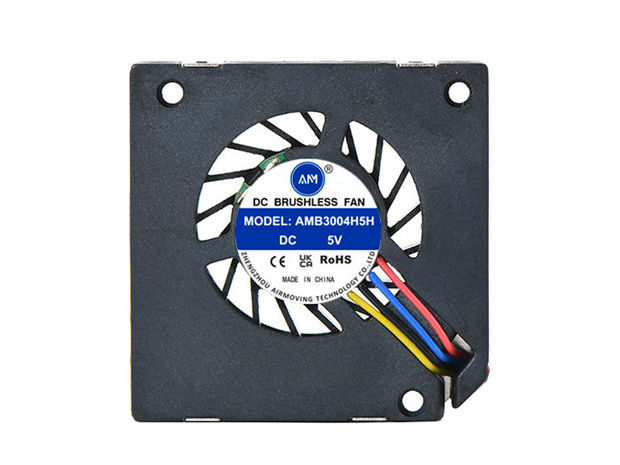

Item code: DC blower fan 3004
Housing: PBT, UL94V-0
Impeller: PBT, UL94V-0
Lead Wire: UL 1007 AWG#28
“+” Red, “-” Black
Available Option: “Sensor” Yellow, “PWM” Blue
Operating Temperature: -10℃ to +70℃ for Sleeve Type
-20℃ to +80℃ for Ball Type
| Model | Rated Voltage | Operation Voltage | Power | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | W | A | RPM | CFM | MmH2O | dBA | |
| AMB3004L05B(S) | 5.0 | 3.0-5.5 | 0.40 | 0.08 | 8500 | 1.18 | 2.55 | 24.3 |
| AMB3004M05B(S) | 0.55 | 0.11 | 9500 | 1.32 | 3.19 | 26.7 | ||
| AMB3004H05B(S) | 0.85 | 0.17 | 11000 | 1.53 | 4.27 | 29.9 |
