| Size: | 30*30*7mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve or Hydraulic |
| Weight: | 4.8g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |

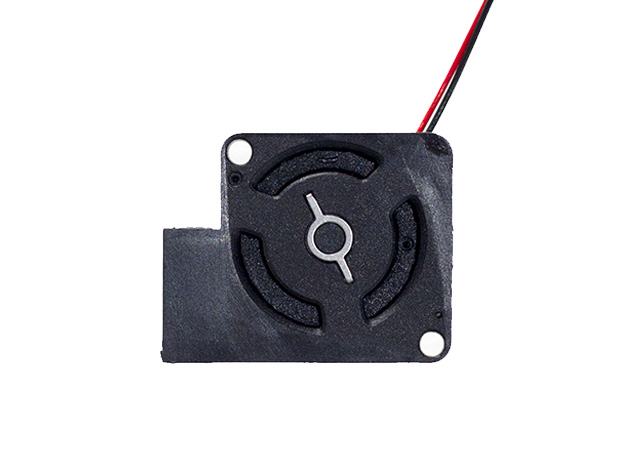

Item code: DC blower fan 3007
Housing: PBT, UL94V-0
Impeller: PBT, UL94V-0
Lead Wire: UL 1007 AWG#28
“+” Red, “-” Black
Available Option: “Sensor” Yellow, “PWM” Blue
Operating Temperature: -10℃ to +70℃ for Sleeve Type
-20℃ to +80℃ for Ball Type
| Model | Rated Voltage | Operation Voltage | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | Amp | RPM | CFM | MmH2O | dBA | |

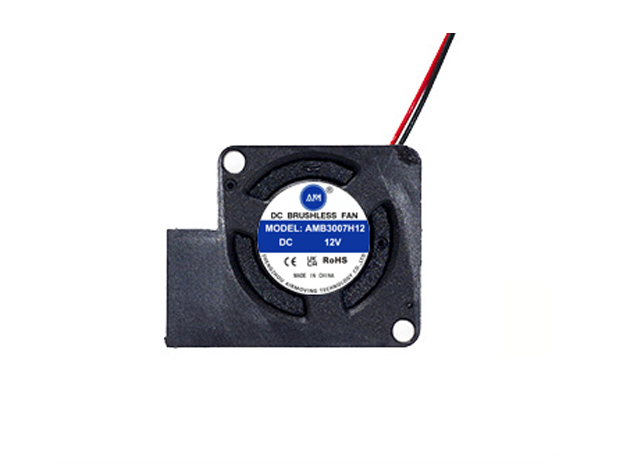

| AMB3007H5 | 5.0 | 3.0-5.5 | 0.095 | 8500 | 0.95 | 6.67 | 25 |
| AMB3007M5 | 0.15 | 11000 | 1.22 | 12.29 | 26 | ||
| AMB3007H12 | 12.0 | 7.0-13.8 | 0.05 | 6000 | 2.10 | 2.22 | 25 |
| AMB3007M12 | 0.07 | 8000 | 2.80 | 5.23 | 26 |
