| Size: | 97*97*33mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve or Hydraulic |
| Weight: | 95g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |

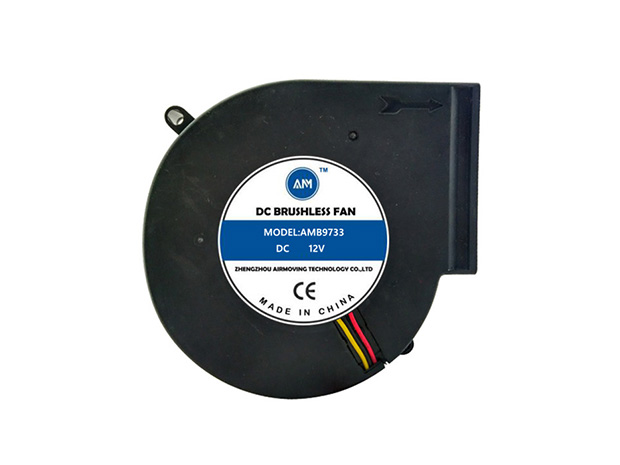

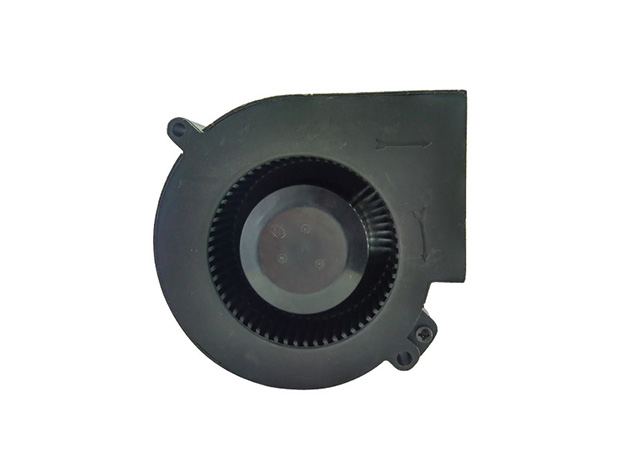

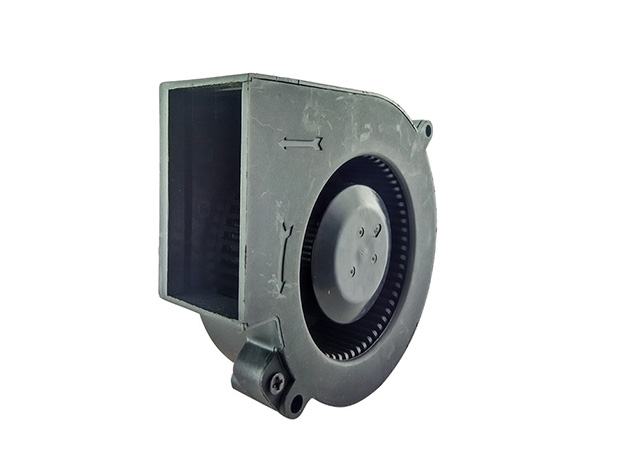

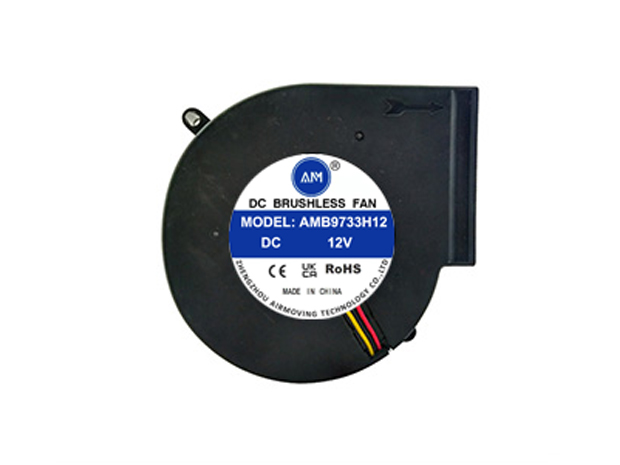

Item code: DC blower fan 9733
Housing: PBT, UL94V-0
Impeller: PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red, “-” Black
Available Option: “Sensor” Yellow, “PWM” Blue
Operating Temperature: -10℃ to +70℃ for Sleeve Type
-20℃ to +80℃ for Ball Type
| Model | Rated Voltage | Operation Voltage | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | Amp | RPM | CFM | mmH2O | dBA | |
| AMB9733H12 | 12.0 | 7.0-13.8 | 1.00 | 4000 | 34.0 | 38.5 | 60 |
| AMB9733M12 | 0.75 | 3500 | 29.8 | 29.5 | 55 | ||
| AMB9733L12 | 0.50 | 3000 | 25.2 | 21.7 | 50 | ||
| AMB9733H24 | 24.0 | 12.0-27.6 | 0.60 | 4000 | 34.0 | 38.5 | 60 |
| AMB9733M24 | 0.40 | 3500 | 29.8 | 29.5 | 55 | ||
| AMB9733L24 | 0.30 | 3000 | 25.2 | 21.7 | 50 | ||
| AMB9733H48 | 48.0 | 24.0-55.2 | 0.30 | 4000 | 34.0 | 38.5 | 60 |
| AMB9733M48 | 0.20 | 3500 | 29.8 | 29.5 | 55 | ||
| AMB9733L48 | 0.12 | 3000 | 25.2 | 21.7 | 50 |
