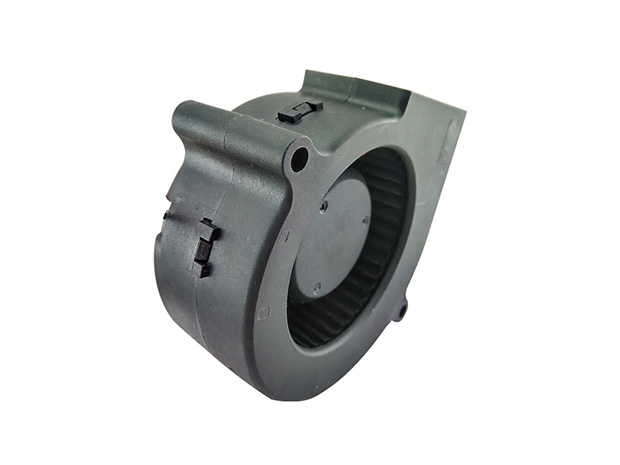

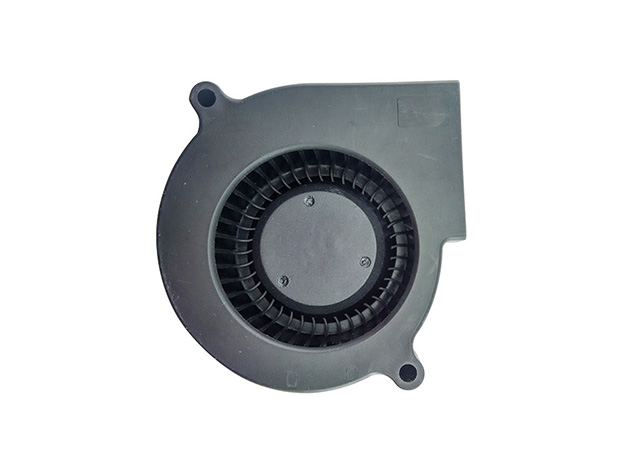

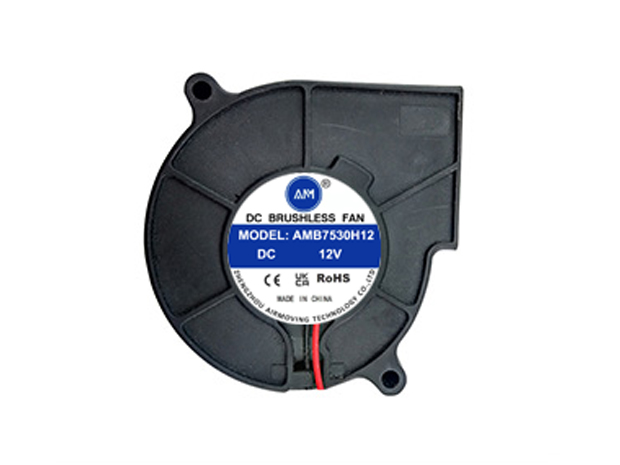

DC blower fan 7530

Size: 75*75*30mm
Motor: DC brushless fan motor
Bearing: Ball, Sleeve or Hydraulic
Weight: 85g
No. of Pole: 4 Poles
Rotating Direction: Counter-Clockwise

Optional Function: 1.Lock Protection 2.Reverse polarity protection 3.Waterproof Level
Technical characteristics

Item code: DC blower fan 7530

Housing: PBT, UL94V-0

Impeller: PBT, UL94V-0

Lead Wire: UL 1007 AWG#26
                “+” Red, “-” Black

Available Option: “Sensor” Yellow, “PWM” Blue

Operating Temperature: -10℃ to +70℃ for Sleeve Type
                                        -20℃ to +80℃ for Ball Type

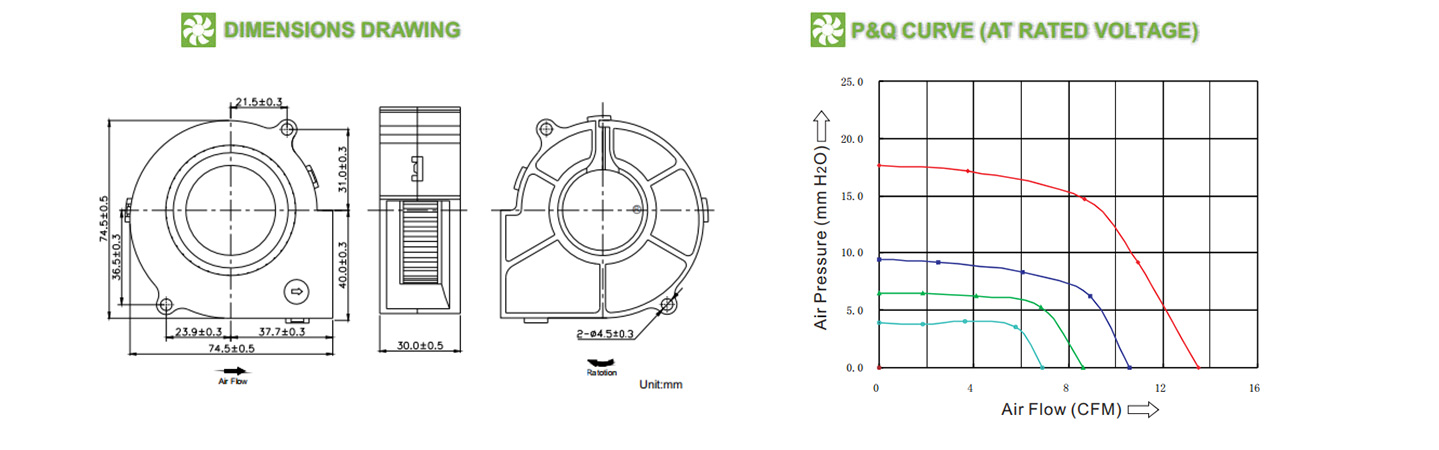

Performance Parameter
Model Rated Voltage Operation Voltage Rated Current Rated Speed Air Flow Air Pressure Noise Level
V DC V DC Amp RPM CFM mmH2O dBA
AMB7530H5 5.0 3.0-6.8 0.45 3000 10.60 9.4 38
AMB7530M5 0.35 2500 8.60 6.5 35
AMB7530L5 0.30 2000 6.90 3.9 28
AMB7530H12 12.0 7.0-13.8 0.50 3800 13.50 17.7 44
AMB7530M12 0.28 3000 10.60 9.4 38
AMB7530L12 0.18 2500 8.60 6.5 35
AMB7530H24 24.0 12.0-27.6 0.30 3800 13.50 17.7 44
AMB7530M24 0.20 3000 10.60 9.4 38
AMB7530L24 0.12 2500 8.60 6.5 35
