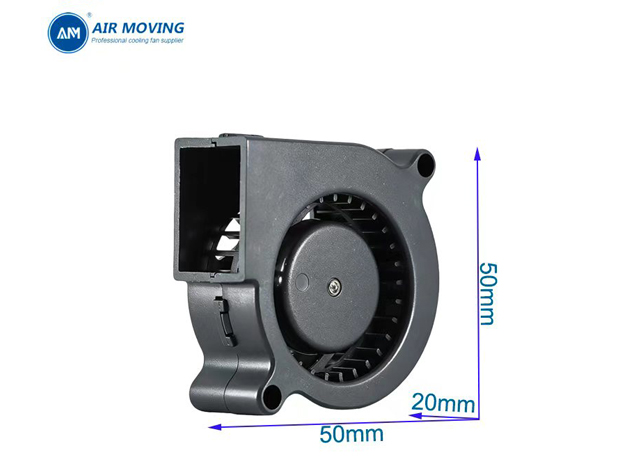

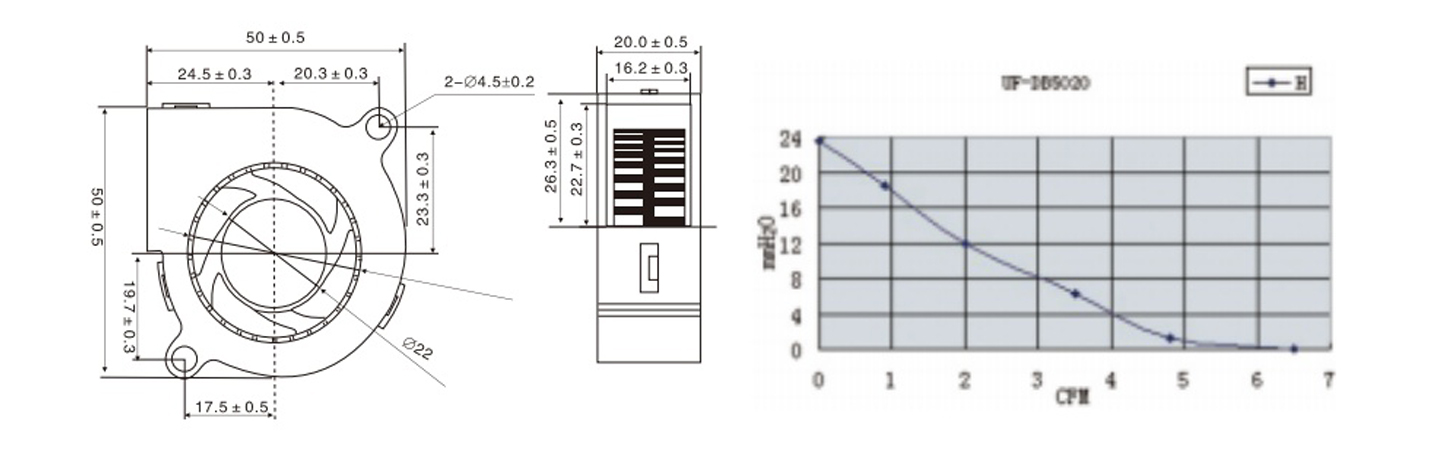

| Size: | 50*50*20mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve |
| Weight: | 33g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |

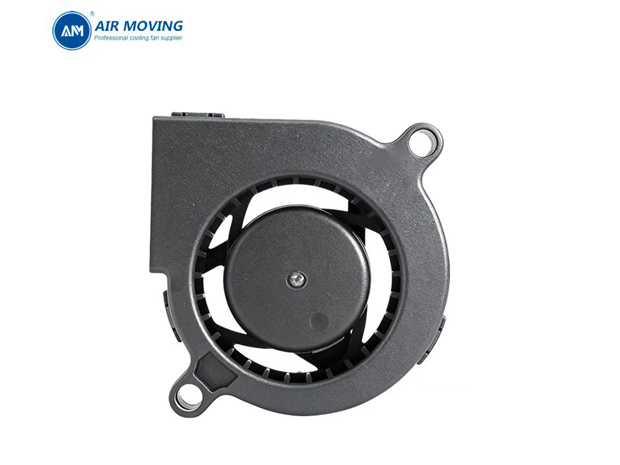

Item code: DC blower fan 5020
Housing: PBT, UL94V-0
Impeller: PBT, UL94V-0
Lead Wire: UL 1007 AWG#26
“+” Red, “-” Black
Available Option: “Sensor” Yellow, “PWM” Blue
Operating Temperature: -10℃ to +70℃ for Sleeve Type
-20℃ to +80℃ for Ball Type
| Model | Rated Voltage | Operation Voltage | Power | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | W | A | RPM | CFM | MmH2O | dBA | |

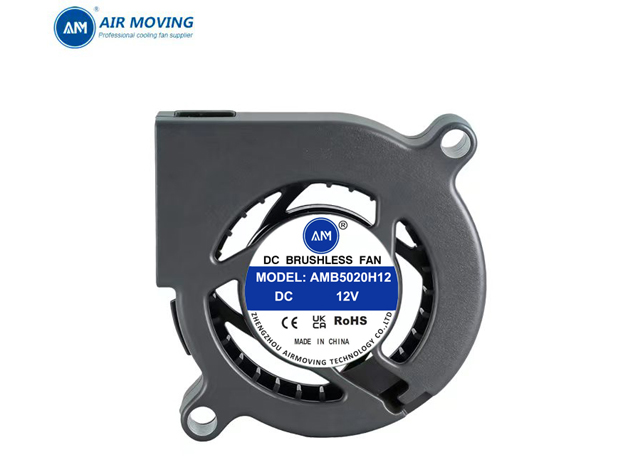

| AMB5020H5B(S) | 5.0 | 3.0-5.5 | 1.75 | 0.35 | 5500 | 6.5 | 23.56 | 43 |
| AMB5020M5B(S) | 1.15 | 0.23 | 4800 | 4.8 | 18.50 | 37 | ||
| AMB5020L5B(S) | 0.65 | 0.13 | 3800 | 3.5 | 11.85 | 32 | ||
| AMB5020H12B(S) | 12.0 | 6.0-13.8 | 2.64 | 0.22 | 5000 | 6.5 | 23.56 | 43 |
| AMB5020M12B(S) | 1.56 | 0.13 | 4000 | 4.8 | 18.50 | 37 | ||
| AMB5020L12B(S) | 1.08 | 0.09 | 3500 | 3.5 | 11.85 | 32 |
