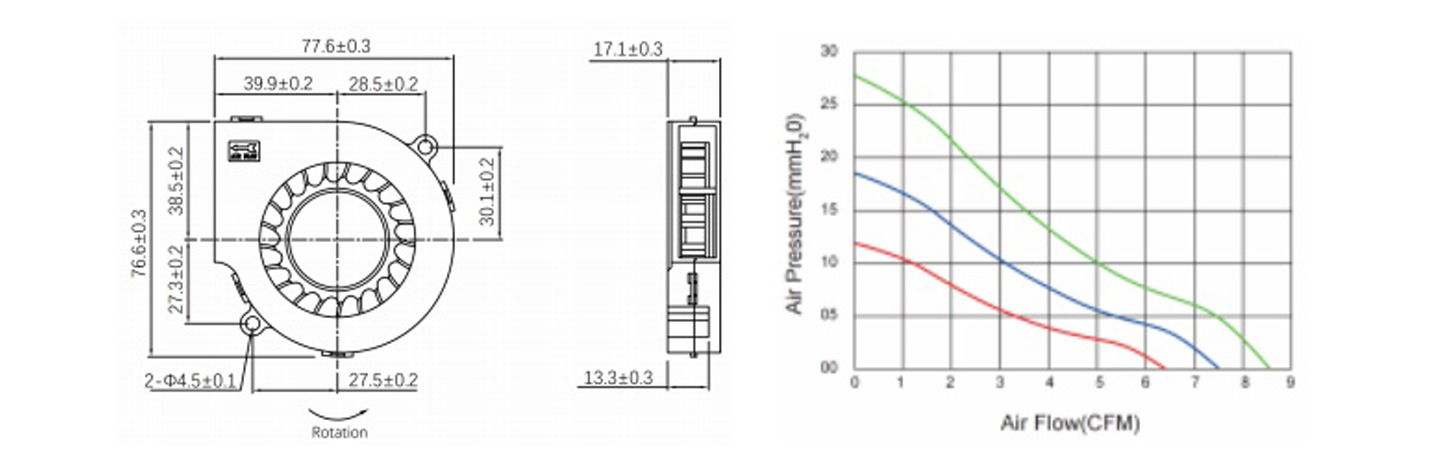

| Size: | 75*75*15mm |
| Motor: | DC brushless fan motor |

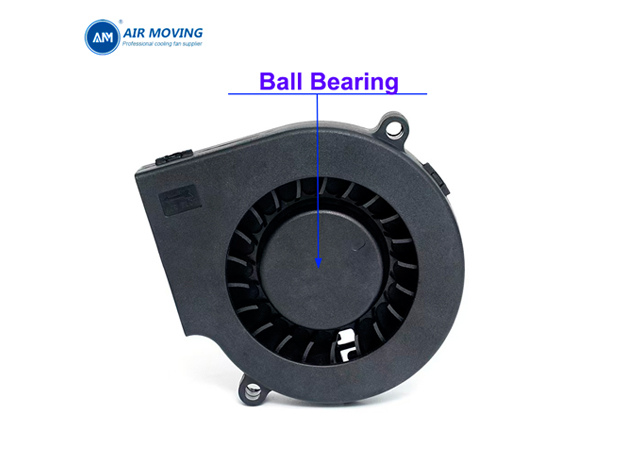

| Bearing: | Ball, Sleeve |
| Weight: | 70g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |

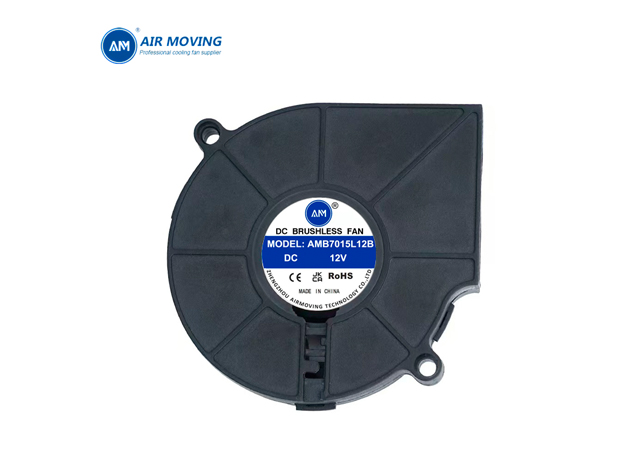

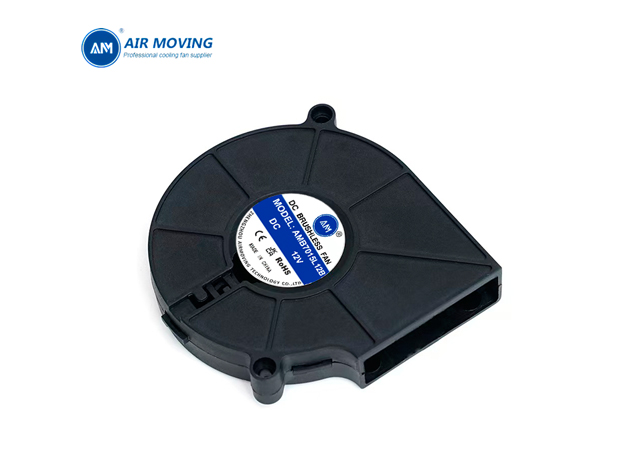

Item code: DC blower fan 7015
Housing: PBT, UL94V-0
Impeller: PBT, UL94V-0
Lead Wire: UL 1007 AWG#26
“+” Red, “-” Black
Available Option: “Sensor” Yellow, “PWM” Blue
Operating Temperature: -10℃ to +70℃ for Sleeve Type
-20℃ to +80℃ for Ball Type
| Model | Rated Voltage | Operation Voltage | Power | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | W | A | RPM | CFM | MmH2O | dBA | |
| AMB7015L12B(S) | 12.0 | 6.0-13.8 | 3.12 | 0.26 | 3000 | 6.33 | 12.28 | 37.6 |
| AMB7015M12B(S) | 3.60 | 0.30 | 3500 | 7.41 | 18.20 | 41.9 | ||
| AMB7015H12B(S) | 4.20 | 0.35 | 4000 | 8.65 | 26.76 | 46.1 | ||
| AMB7015L24B(S) | 24.0 | 12.0-27.0 | 2.16 | 0.09 | 3000 | 6.33 | 12.28 | 37.6 |
| AMB7015M24B(S) | 3.36 | 0.14 | 3500 | 7.41 | 18.20 | 41.9 | ||
| AMB7015H24B(S) | 4.32 | 0.18 | 4000 | 8.65 | 26.76 | 46.1 |
