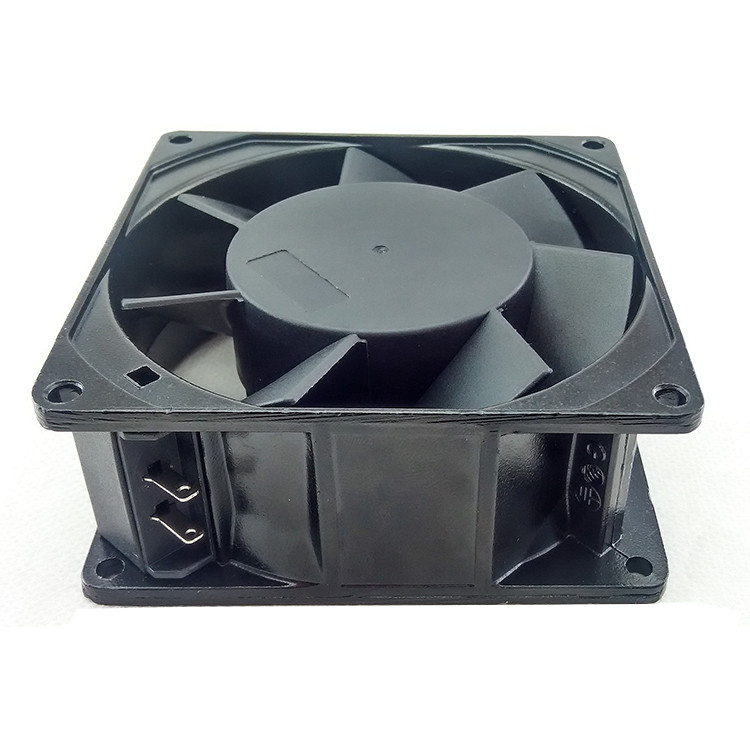

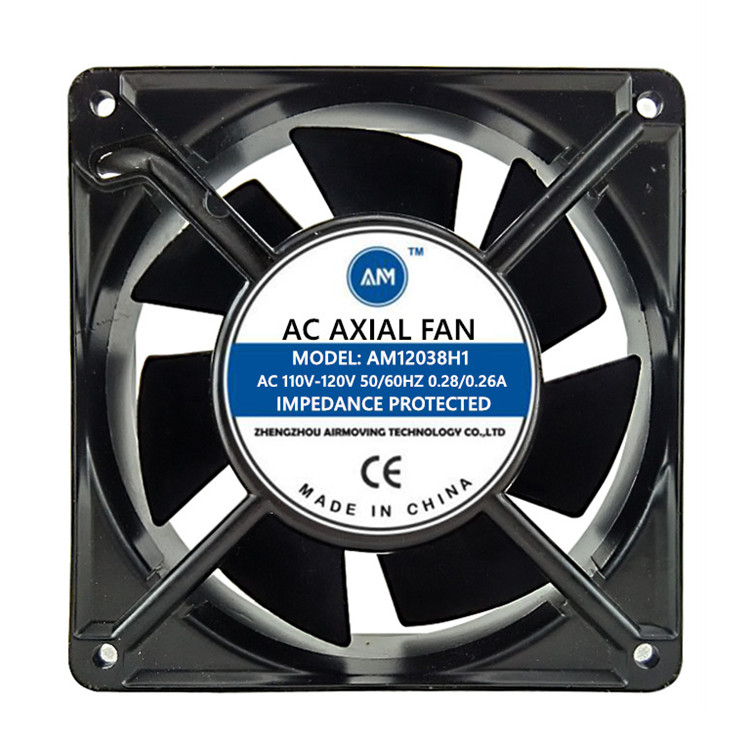

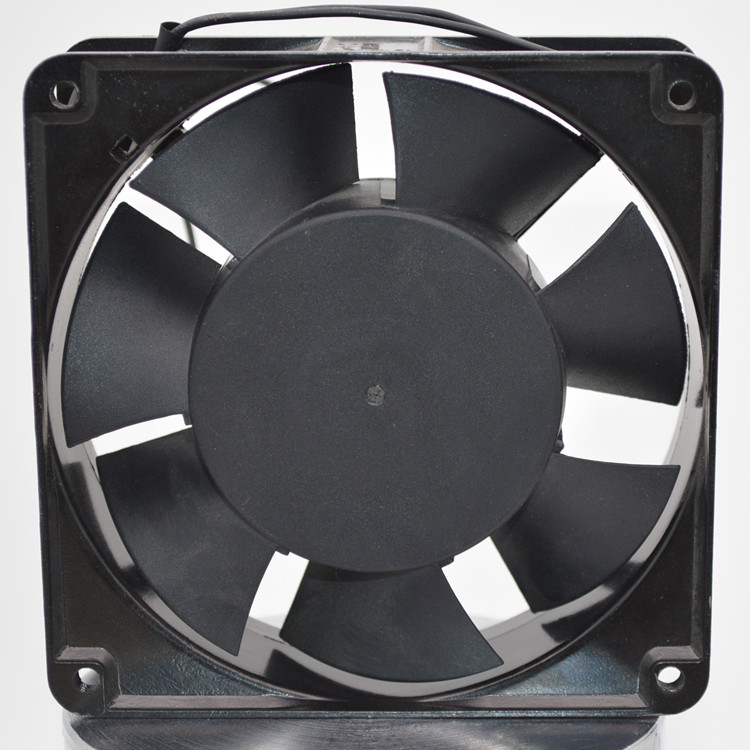

AC 12038, 7 blades

Size:	12012038mm
Motor wires:	100% pure copper motor wires
Bearing:	Ball or Sleeve
Weight:	450g
Safety:	Impedance Protected

Remarks: for 120*120*38mm AC fan impeller, normally there are 5 blades. While there are some customers who need higher speed fans. We will recommend them using 120*120*38mm fan with 9 blades or EC fan.

Get a quote for free Product manual download

Technical characteristics

Item code: AC 12038, 7 blades

Housing: Aluminum Alloy, Painted Black

Impeller: Thermoplastic PBT, UL94V-0

Lead Wire: UL 1007 AWG#24,

Termination: Lead wire, no connector

Operating Temperature: -10℃ to +70℃ for Sleeve Type
-20℃ to +80℃ for Ball Type

Performance Parameter

Model	Bearing System		Rated Voltage	Frequency	Rated Current	Rated Input Power	Rated Speed	Air Flow	Air Pressure	Noise Level
	Ball	Sleeve	V AC	Hz	Amp	Watt	RPM	CFM	MmH2O	dBA
AM12038MS1		√	110-125	50/60	0.15	15/14	2300/2600	71/82	5.1/6.8	39/42
AM12038MB1	√		110-125	50/60	0.26/0.24	20/19	2550/2900	93/104	8.4/9.7	44/49
AM12038MS2		√	200-240	50/60	0.16	15/14	2300/2600	71/82	5.1/6.8	39/42
AM12038MB2	√		200-240	50/60	0.14/0.12	20/19	2550/2900	93/104	8.4/9.7	44/49
AM12038MS3		√	380	50/60	0.08/0.07	20/19	2550/2900	93/104	8.4/9.7	44/49
AM12038MB3	√		380	50/60	0.08/0.07	20/19	2550/2900	93/104	8.4/9.7	44/49
