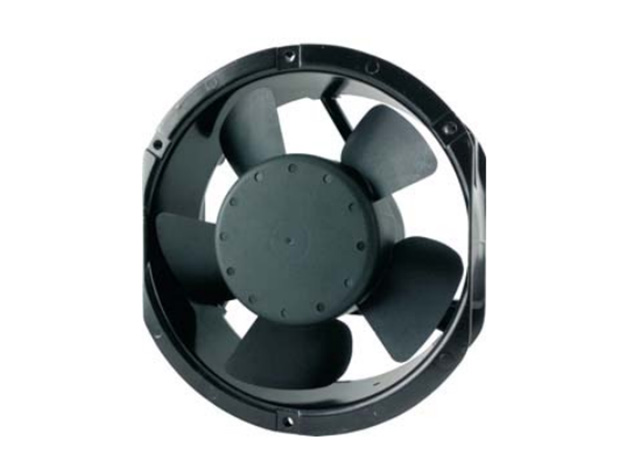

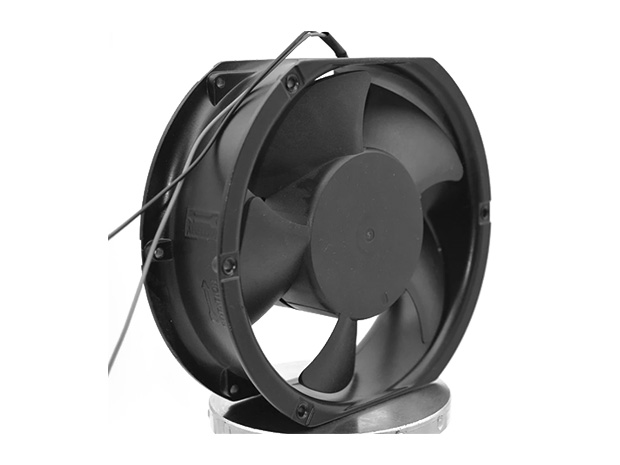

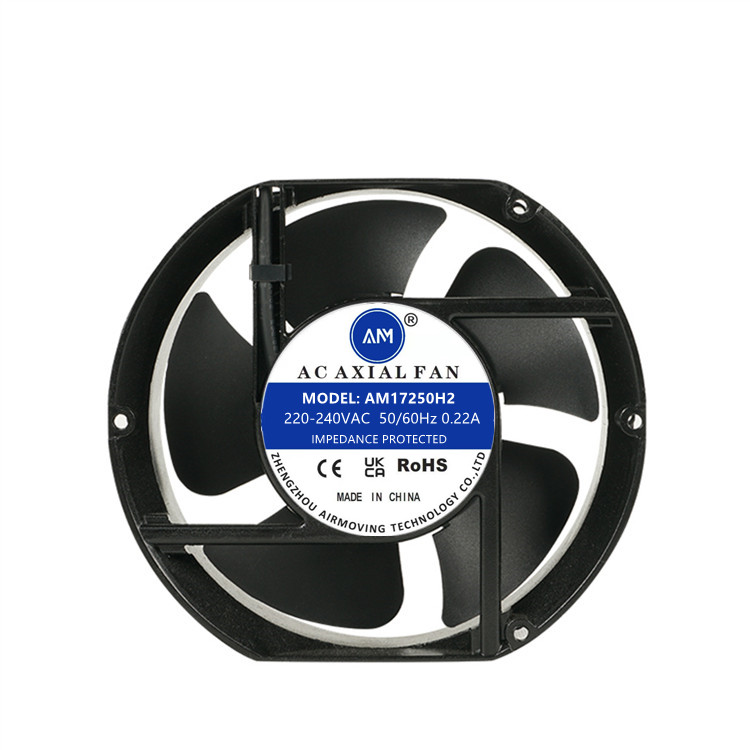

AC 17250, oval 172*150*51mm CCA wires

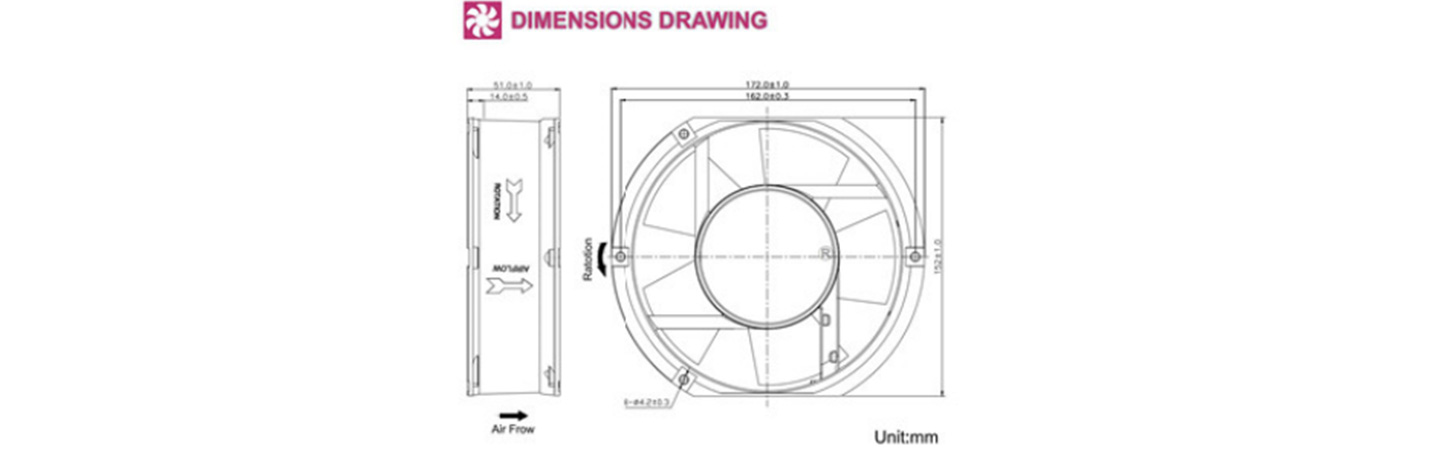

Size: 172*150*51mm
Motor wires: Copper clad aluminium motor wires
Bearing: Sleeve
Weight: 720g
Safety: Impedance Protected
Technical characteristics

Item code: AC 17250, oval, CCA wires

Weight: 650 gram

Housing: Aluminum Alloy, Painted Black

Impeller: Thermoplastic PBT, UL94V-0

Lead Wire: UL 1007 AWG#22

Termination: Lead wire, no connector

Operating Temperature: -10℃ to +70℃ for Sleeve Type


Performance Parameter
Model Bearing System Rated Voltage Frequency Rated Current Rated Input Power Rated Speed Air Flow Air Pressure Noise Level
V AC Hz Amp Watt RPM CFM MmH2O dBA
AM17250LS1 Sleeve 110-125 50/60 0.15 21/20 2100/2300 137/155 6.0/6.9 39/45
AM17250LS2 Sleeve 200-240 50/60 0.12 21/20 2100/2300 137/155 6.0/6.9 39/45
