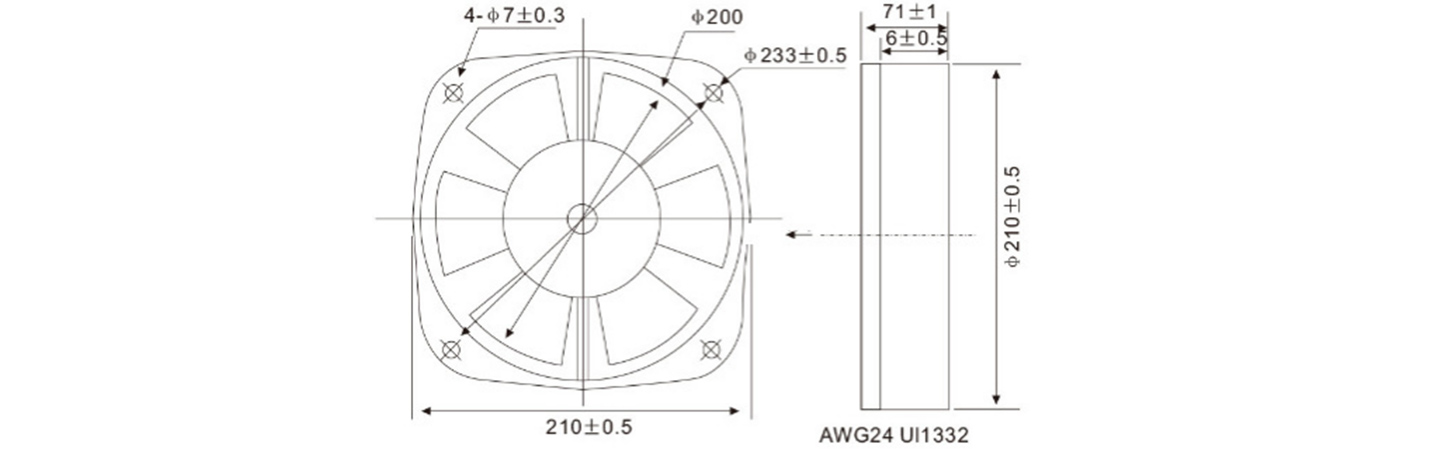

| Size： | 210x210x73mm |
| Motor wires: | 100% pure copper motor wires |
| Bearing: | Ball |
| Weight: | 1500g |

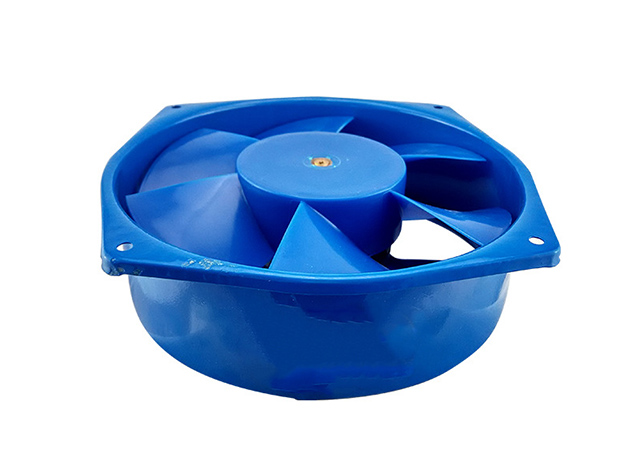

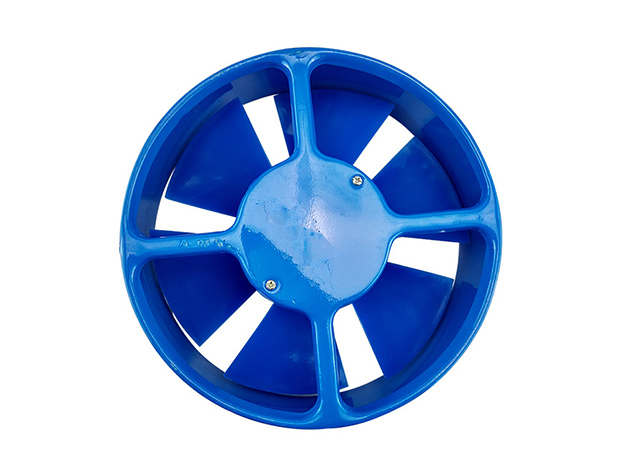

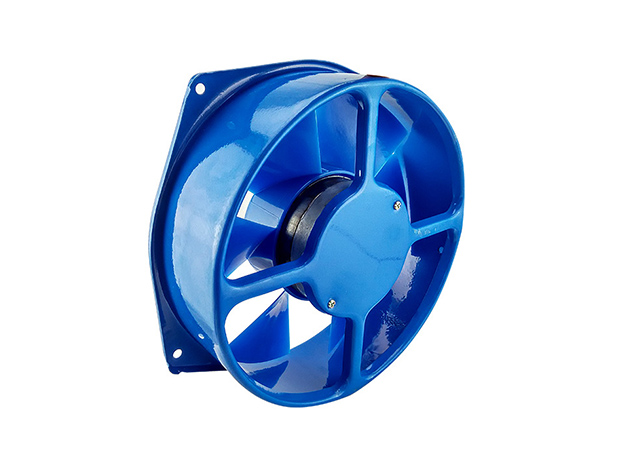

Item code: AC 200FZY Blue
Housing: Iron or aluminium alloy, Painted Blue
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#22
Termination: Lead wire, no connector
Operating Temperature: -20℃ to +80℃ for Ball Type
| Model | Rated Voltage | Frequency | Rated Current | Rated Speed | Air Flow | Phase Number | Capacitance | Noise Level |
| V AC | Hz | Amp | RPM | CFM | dBA | |||
| AM200FZY-1 | 110-125 | 50/60 | 0.6 | 2600/3000 | 459/529 | 1 | 3.0μF/250V | 70/75 |
| AM200FZY-2 | 200-240 | 50/60 | 0.3 | 2600/3000 | 459/529 | 1 | 1.0μF/250V | 70/75 |
| AM200FZY-3 | 380-420 | 50/60 | 0.16 | 2600/3000 | 459/529 | 1 | 0.33μF/250 | 70/75 |
| AM200FZY-3C | 380-420 | 50/60 | 0.15 | 2600/3000 | 459/529 | 3 | / | 70/75 |
