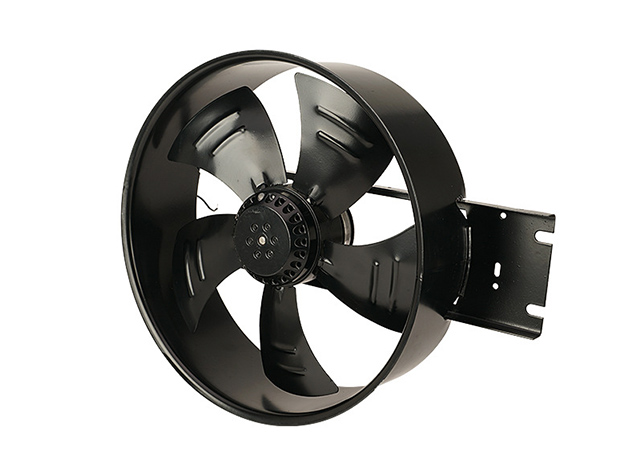

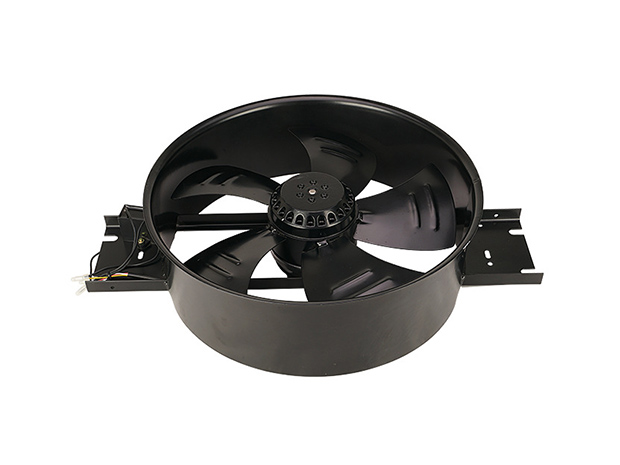

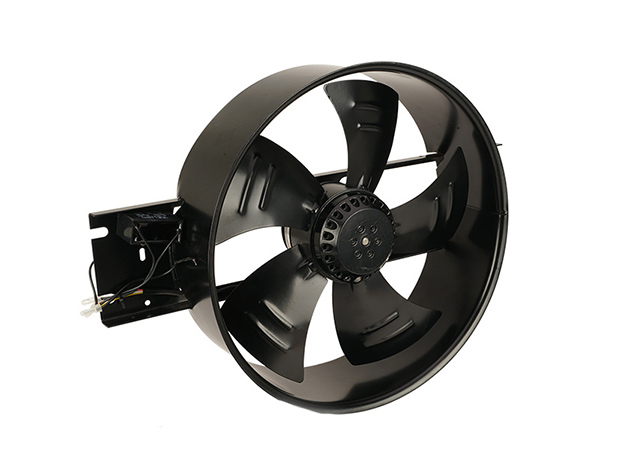

AC 350FZY2-D

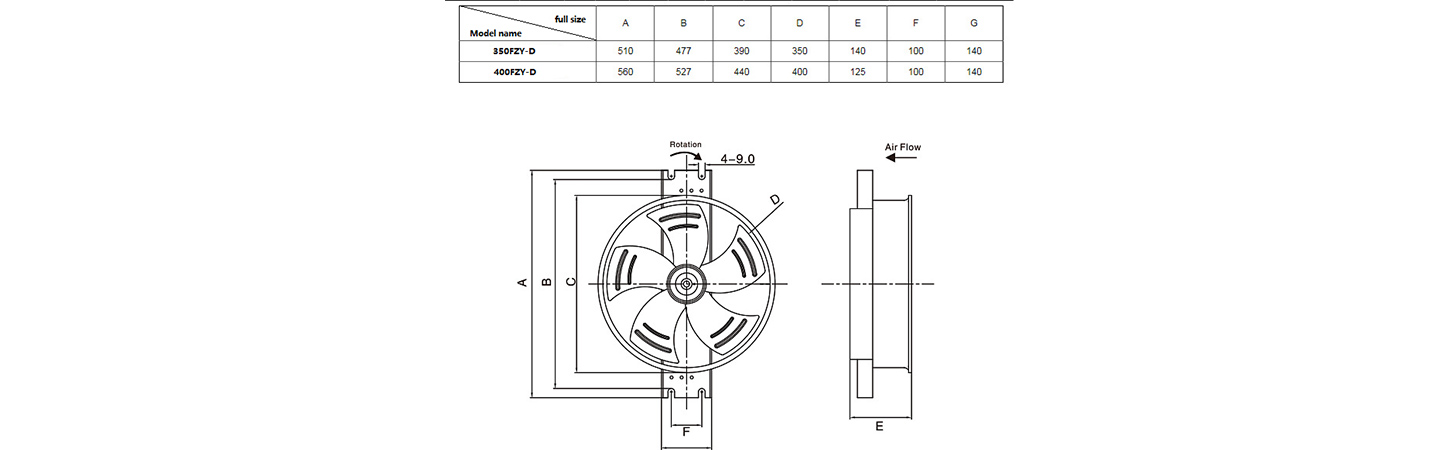

Size: Φ390*125mm
Motor wires: 100% pure copper motor wires
Bearing: Ball
Weight: 6000g
Technical characteristics

Item code: AC 350FZY2-D

Housing: Iron, Painted Black

Impeller: Iron, Painted Black

Lead Wire: UL 1007 AWG#22

Termination: Lead wire, no connector

Operating Temperature: -20℃ to +80℃ for Ball Type


Performance Parameter
Model Rated Voltage Frequency Rated Current Imput power W Rated Speed Air Flow Phase No. Capacitance Noise Level
V  AC Hz Amp RPM M3/hr dBA
AM350FZY2-D 220V 50/60 0.7 150 1350/1500 2880/3100 1 5μF/450V 67/69
AM350FZY3-D 380V 50/60 0.35 150 1350/1500 2880/3100 3 / 67/69
AM350FZY4-D 380V 50/60 0.4 150 1350/1500 2880/3100 1 2.2μF/500V 67/69
