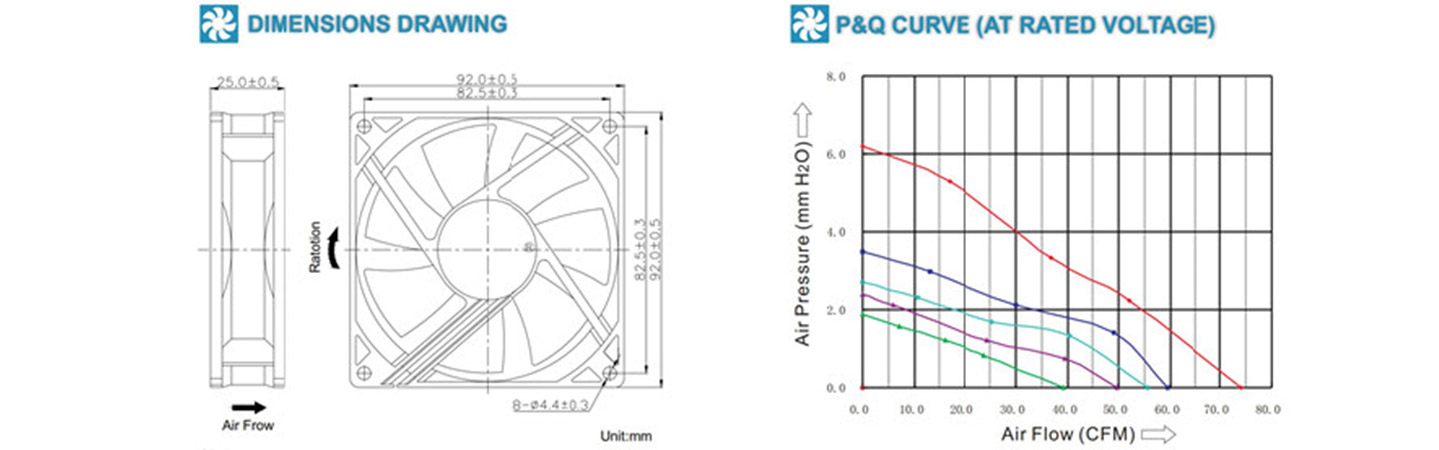

| Size: | 92*92*25mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve or Hydraulic |
| Weight: | 84g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Auto restart | |
| 3.Waterproof Level |
Item code: DC9225
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Available Option: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -10℃ to +70℃，35%-85%RH for Sleeve Type
-20℃ to +80℃，35%-85%RH for Ball Type
| Model | Rated Voltage | Operation Voltage | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | Amp | RPM | CFM | MmH2O | dBA | |
| AM9225H5 | 5.0 | 3.5-5.5 | 0.40 | 2800 | 55.5 | 2.7 | 35 |
| AM9225M5 | 0.28 | 2500 | 49.6 | 2.4 | 32 | ||
| AM9225L5 | 0.22 | 2000 | 39.2 | 1.9 | 27 | ||
| AM9225H12 | 12.0 | 6.0-13.8 | 0.50 | 3800 | 74.0 | 6.2 | 42 |
| AM9225M12 | 0.28 | 3000 | 59.6 | 3.5 | 36 | ||
| AM9225L12 | 0.15 | 2000 | 39.2 | 1.9 | 27 | ||
| AM9225H24 | 24.0 | 12.0-27.6 | 0.30 | 3800 | 74.0 | 6.2 | 42 |
| AM9225M24 | 0.20 | 3000 | 59.6 | 3.5 | 36 | ||
| AM9225L24 | 0.10 | 2000 | 39.2 | 1.9 | 27 | ||
| AM9225H48 | 48.0 | 24.0-55.2 | 0.18 | 3800 | 74.0 | 6.2 | 42 |
| AM9225M48 | 0.12 | 3000 | 59.6 | 3.5 | 36 | ||
| AM9225L48 | 0.10 | 2000 | 39.2 | 1.9 | 27 |
