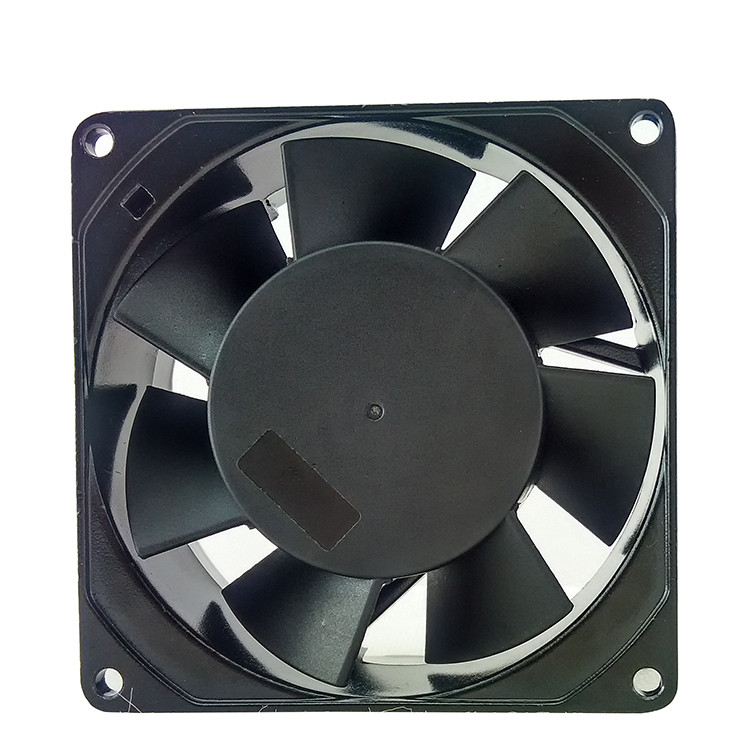

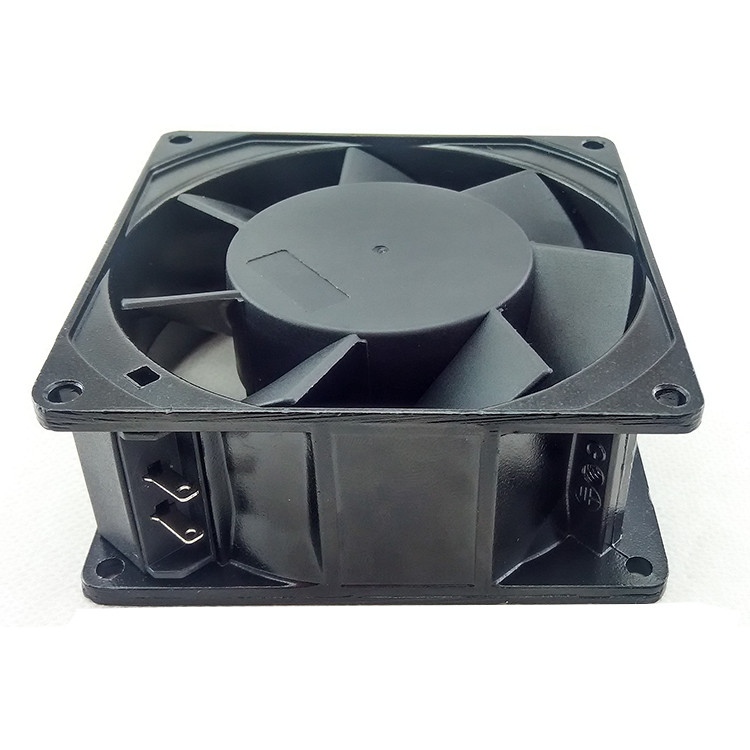

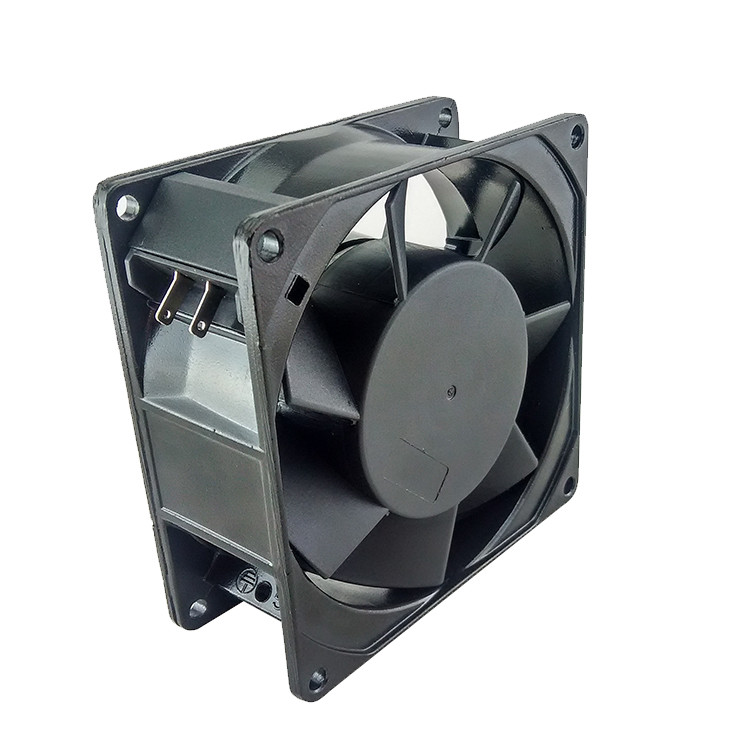

AC 9225

Size: 92*92*25mm
Motor wires: 100% pure copper motor wires
Bearing: Ball or Sleeve
Weight: 250g
Safety: Impedance Protected
Technical characteristics

Item code: AC 9225

Housing: Aluminum Alloy, Painted Black

Impeller: Thermoplastic PBT, UL94V-0

Lead Wire: UL 1007 AWG#24,

Termination: Lead wire, no connector

Operating Temperature: -10℃ to +70℃ for Sleeve Type
                                        -20℃ to +80℃ for Ball Type


Performance Parameter
Model Bearing System Rated Voltage Frequency Rated Current Rated Input Power Rated Speed Air Flow Air Pressure Noise Level
Ball Sleeve V AC Hz Amp Watt RPM CFM MmH2O dBA
AM9225MS1 110-125 50/60 0.14/0.12 14/12 2300/2500 28.3/31.8 3.0/4.6 35/37
AM9225MB1 110-125 50/60 0.14/0.12 14/12 2400/2600 29.7/33.2 3.3/4.8 35/37
AM9225MS2 200-240 50/60 0.07/0.06 14/12 2300/2500 28.3/31.8 3.0/4.6 35/37
AM9225MB2 200-240 50/60 0.07/0.06 14/12 2400/2600 29.7/33.2 3.3/4.8 35/37
