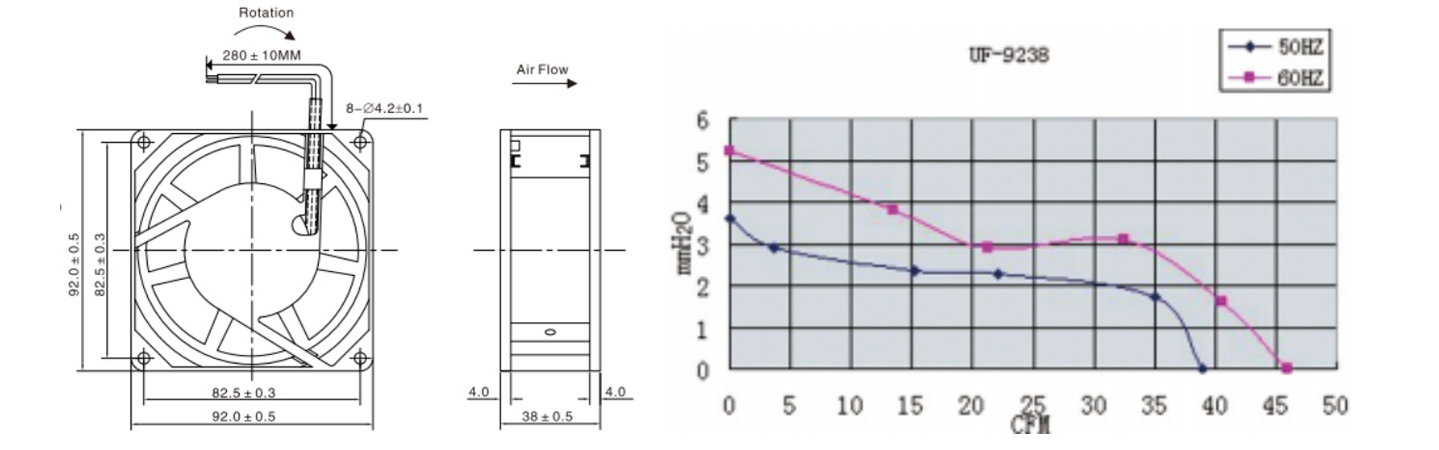

| Size: | 92*92*38mm |
| Motor wires: | 100% pure copper motor wires |
| Bearing: | Ball or Sleeve |
| Weight: | 340g |
| Safety: | Impedance Protected |
Item code: AC 9238
Housing: Aluminum Alloy, Painted Black
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24,
Termination: Lead wire, no connector
Operating Temperature: -10℃ to +70℃ for Sleeve Type
-20℃ to +80℃ for Ball Type
| Model | Bearing System | Rated Voltage | Frequency | Rated Current | Rated Input Power | Rated Speed | Air Flow | Air Pressure | Noise Level | |
| Ball | Sleeve | V AC | Hz | Amp | Watt | RPM | CFM | MmH2O | dBA | |
| AM9238H2 | √ | √ | 230 | 50/60 | 0.08 | 17/15 | 2400/2800 | 39/48 | 3.6/5.2 | 34/36 |
| AM9238M2 | √ | √ | 230 | 50/60 | 0.05 | 13/10 | 1900/2400 | 35/39 | 2.9/3.2 | 27/34 |
| AM9238H1 | √ | √ | 120 | 50/60 | 0.15 | 17/15 | 2400/2800 | 39/46 | 3.6/5.2 | 34/36 |
| AM9238M2 | √ | √ | 120 | 50/60 | 0.10 | 13/10 | 1900/2400 | 35/39 | 2.9/3.2 | 27/34 |
