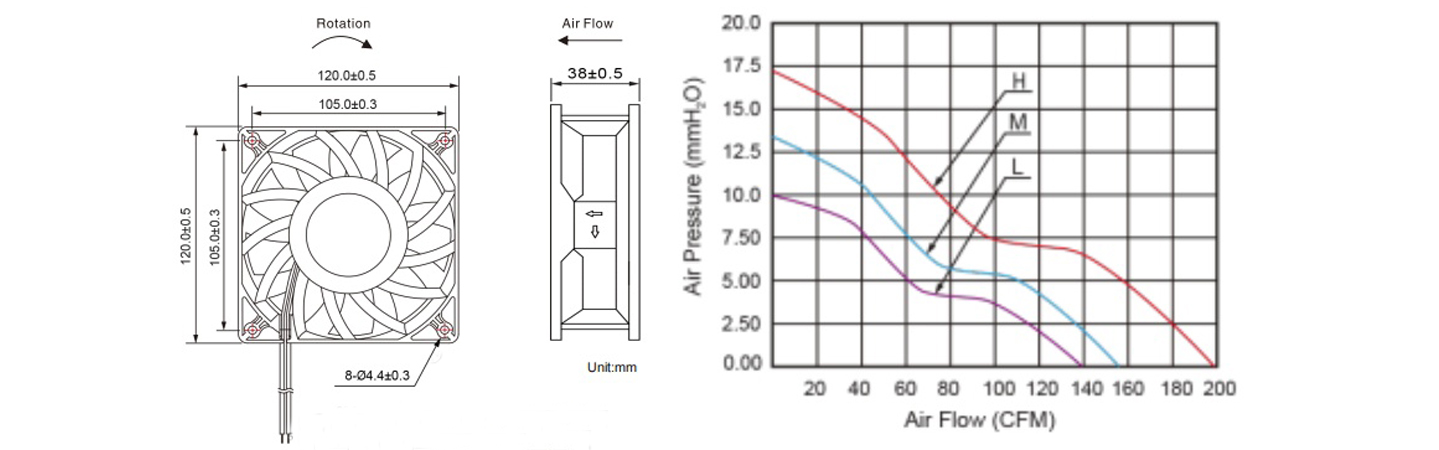

| Size: | 120*120*38mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball |
| Weight: | 290g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Auto restart | |
| 3.Waterproof Level |
Item code: DC 12038 high speed
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -20℃ to +80℃ for Ball Type
| Model | Rated Voltage | Operation Voltage | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | Amp | RPM | CFM | MmH2O | dBA | |
| AM12038L12B | 12.0 | 6.0-13.8 | 0.85 | 3000 | 140.0 | 10.0 | 50 |
| AM12038M12B | 1.20 | 3500 | 152.2 | 13.7 | 55 | ||
| AM12038H12B | 1.70 | 4000 | 193.5 | 17.0 | 59 | ||
| AM12038L24B | 24.0 | 12.0-27.0 | 0.40 | 3000 | 140.0 | 10.0 | 50 |
| AM12038M24B | 0.60 | 3500 | 152.2 | 13.7 | 55 | ||
| AM12038H24B | 1.15 | 4000 | 193.5 | 17.0 | 59 |
