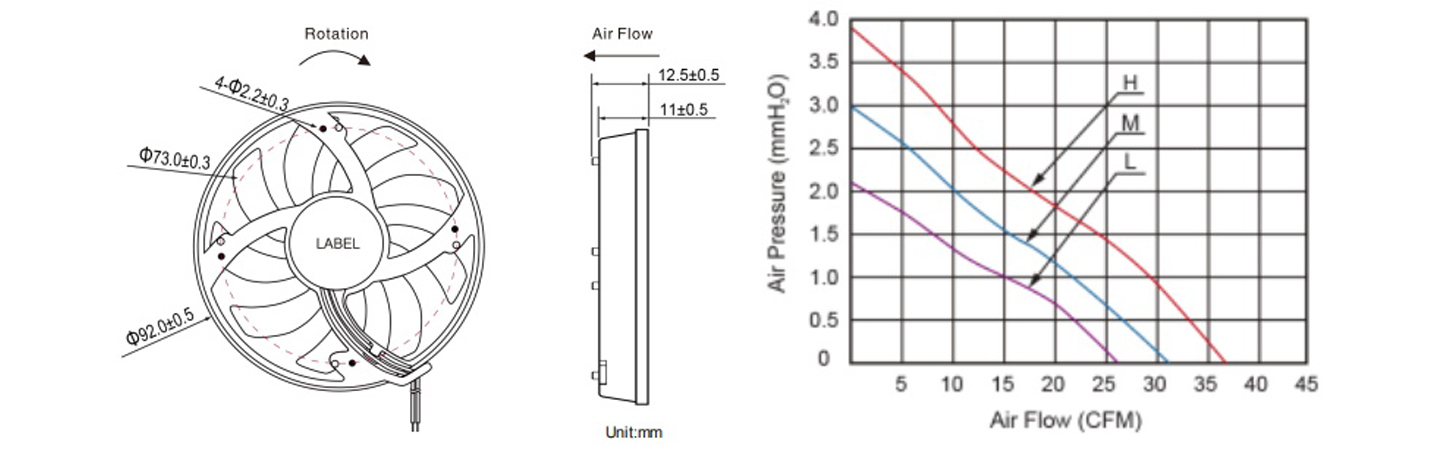

| Size: | Φ90*10mm |
| Motor: | DC round fan motor |
| Bearing: | Ball, Sleeve |
| Weight: | 35g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Auto restart | |
| 3.Waterproof Level |

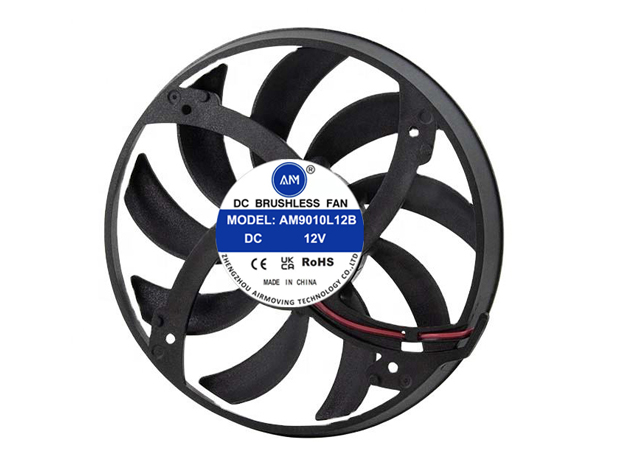

Item code: DC9010
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -10℃ to +70℃，35%-85%RH for Sleeve Type
| Model | Rated Voltage | Operation Voltage | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | Amp | RPM | CFM | MmH2O | dBA | |
| AM9010L5B(S) | 5.0 | 3.0-5.5 | 0.21 | 3000 | 26.4 | 2.20 | 32 |
| AM9010M5B(S) | 0.38 | 3500 | 32.7 | 3.00 | 37 | ||
| AM9010H5B(S) | 0.50 | 4000 | 36.4 | 3.90 | 40 | ||
| AM9010L12B(S) | 12.0 | 6.0-13.8 | 0.09 | 3000 | 26.4 | 2.20 | 32 |
| AM9010M12B(S) | 0.16 | 3500 | 32.7 | 3.00 | 37 | ||
| AM9010H12B(S) | 0.23 | 4000 | 36.4 | 3.90 | 40 | ||
| AM9010L245B(S) | 24.0 | 12.0-27.0 | 0.05 | 3000 | 26.4 | 2.20 | 32 |
| AM9010M24B(S) | 0.08 | 3500 | 32.7 | 3.00 | 37 | ||
| AM9010H24B(S) | 0.12 | 4000 | 36.4 | 3.90 | 40 |
