| Size: | 92*92*25mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve |
| Weight: | 83g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Auto restart | |
| 3.Waterproof Level |
Item code: DC9225
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Available Option: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -10℃ to +70℃，35%-85%RH for Sleeve Type
-20℃ to +80℃，35%-85%RH for Ball Type

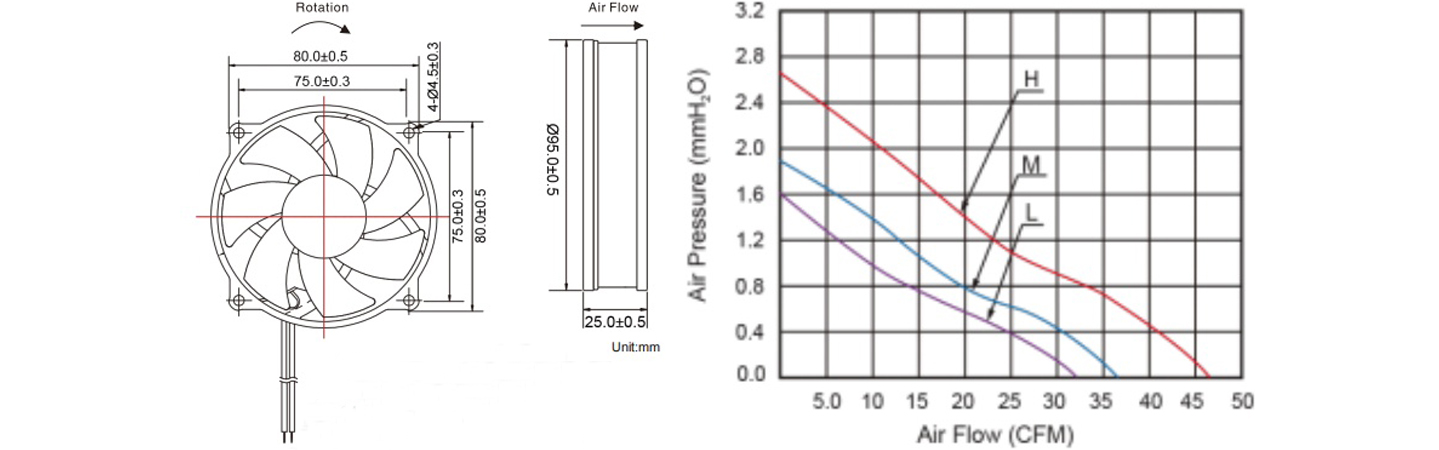

| Model | Rated Voltage | Operation Voltage | Power | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | W | A | RPM | CFM | MmH2O | dBA | |
| AM9225L12B(S) | 12.0 | 6.0-13.8 | 0.84 | 0.09 | 2000 | 32.60 | 1.60 | 28 |
| AM9225M12B(S) | 1.92 | 0.16 | 2500 | 37.50 | 1.85 | 33 | ||
| AM9225H12B(S) | 2.16 | 0.18 | 3000 | 46.30 | 2.60 | 36 |
