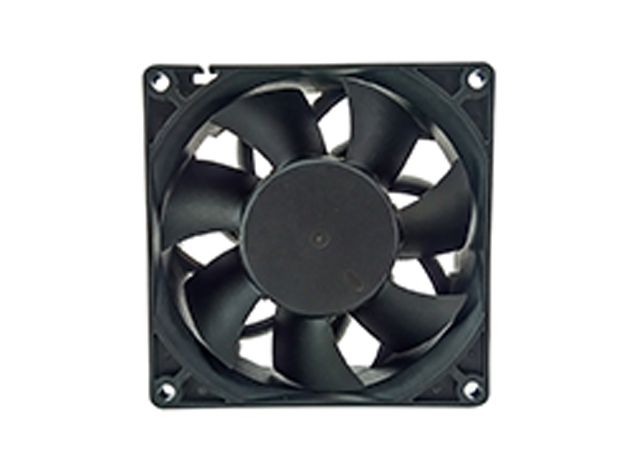

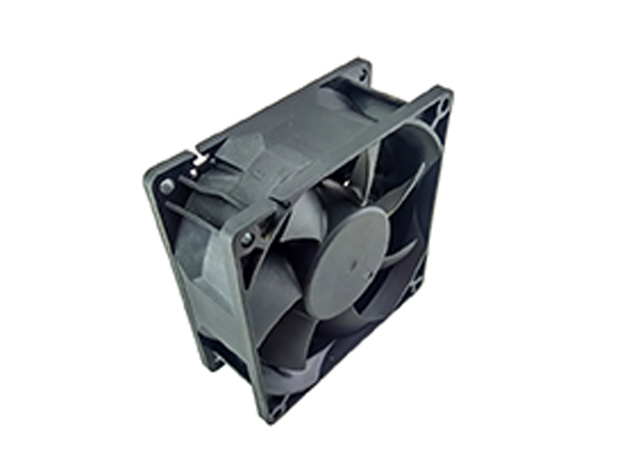

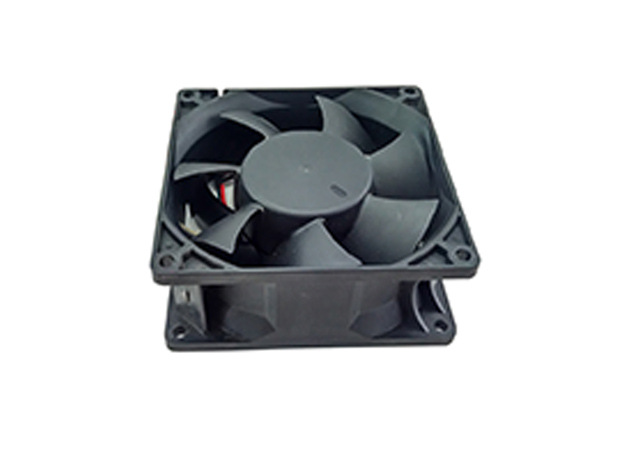

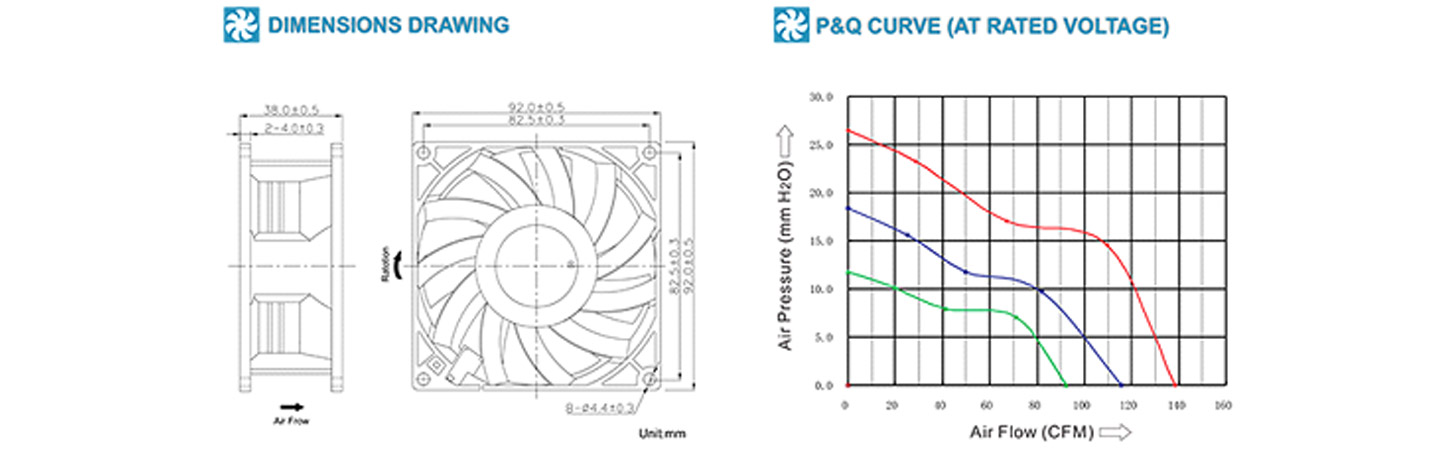

| Size: | 92*92*38mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve or Hydraulic |
| Weight: | 170g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Auto restart | |
| 3.Waterproof Level |
Item code: DC 9238
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -20℃ to +80℃
| Model | Rated Voltage | Operation Voltage | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | Amp | RPM | CFM | MmH2O | dBA | |
| AM9238H12 | 12.0 | 7.0-13.8 | 2.50 | 6000 | 138.5 | 26.4 | 63 |
| AM9238M12 | 1.00 | 5000 | 115.4 | 18.4 | 56 | ||
| AM9238L12 | 0.50 | 4000 | 92.3 | 11.7 | 48 | ||
| AM9238H24 | 24.0 | 15.0-27.6 | 1.50 | 6000 | 138.5 | 26.4 | 63 |
| AM9238M24 | 0.75 | 5000 | 115.4 | 18.4 | 56 | ||
| AM9238L24 | 0.25 | 4000 | 92.3 | 11.7 | 48 | ||
| AM9238H48 | 48.0 | 24.0-55.2 | 0.80 | 6000 | 138.5 | 26.4 | 63 |
| AM9238M48 | 0.30 | 5000 | 115.4 | 18.4 | 56 | ||
| AM9238L48 | 0.20 | 4000 | 92.3 | 11.7 | 48 |
