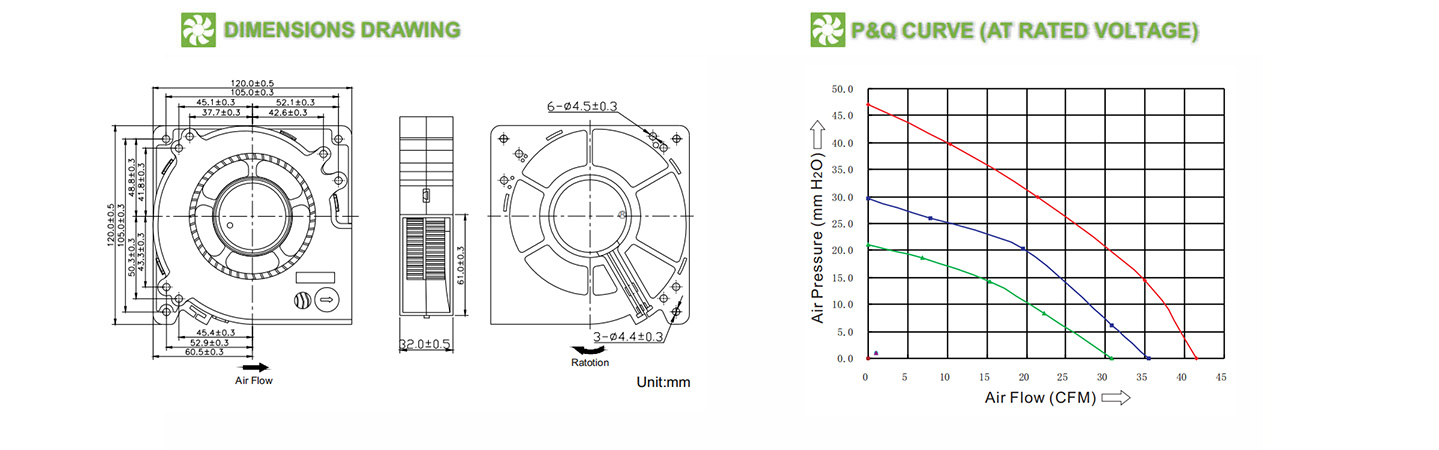

| Size: | 120*120*32mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve or Hydraulic |
| Weight: | 250g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |

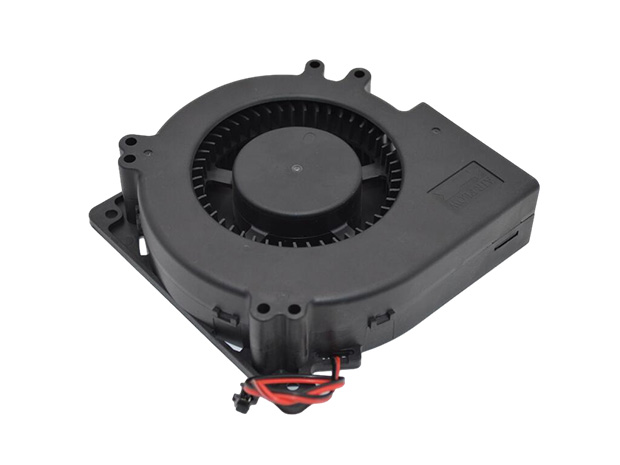

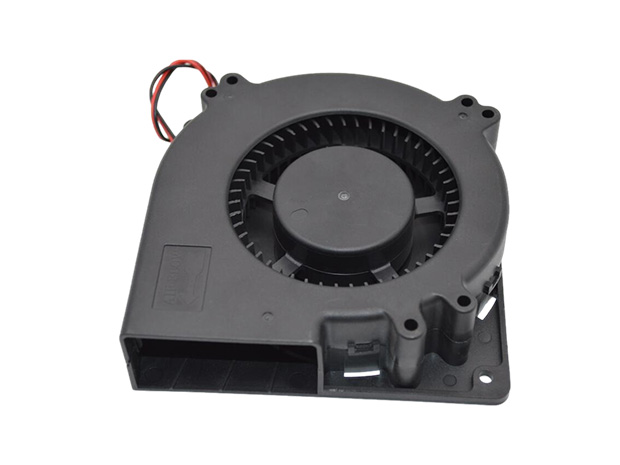

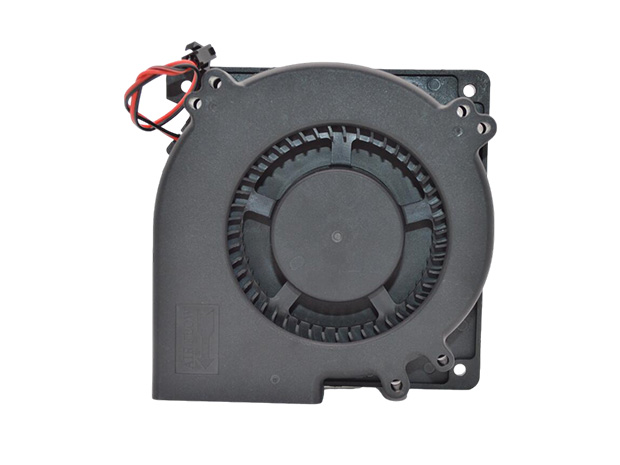

Item code: DC blower fan 12032
Housing: PBT, UL94V-0
Impeller: PBT, UL94V-0
Lead Wire: UL 1007 AWG#22
“+” Red, “-” Black
Available Option: “Sensor” Yellow, “PWM” Blue
Operating Temperature: -10℃ to +70℃ for Sleeve Type
-20℃ to +80℃ for Ball Type
| Model | Rated Voltage | Operation Voltage | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | Amp | RPM | CFM | mmH2O | dBA | |
| AMB12032H12 | 12.0 | 7.0-13.8 | 1.80 | 3500 | 41.5 | 47.0 | 57 |
| AMB12032M12 | 1.30 | 3000 | 35.4 | 29.7 | 51 | ||
| AMB12032L12 | 1.00 | 2500 | 30.8 | 21.1 | 45 | ||
| AMB12032H24 | 24.0 | 12.0-27.6 | 0.80 | 3500 | 41.5 | 47.0 | 57 |
| AMB12032M24 | 0.35 | 3000 | 35.4 | 29.7 | 51 | ||
| AMB12032L24 | 0.28 | 2500 | 30.8 | 21.1 | 45 | ||
| AMB12032H48 | 48.0 | 24.0-55.2 | 0.30 | 3500 | 41.5 | 47.0 | 57 |
| AMB12032M48 | 0.20 | 3000 | 35.4 | 29.7 | 51 | ||
| AMB12032L48 | 0.12 | 2500 | 30.8 | 21.1 | 45 |
