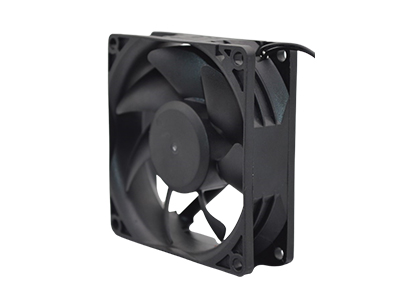

EC 8025

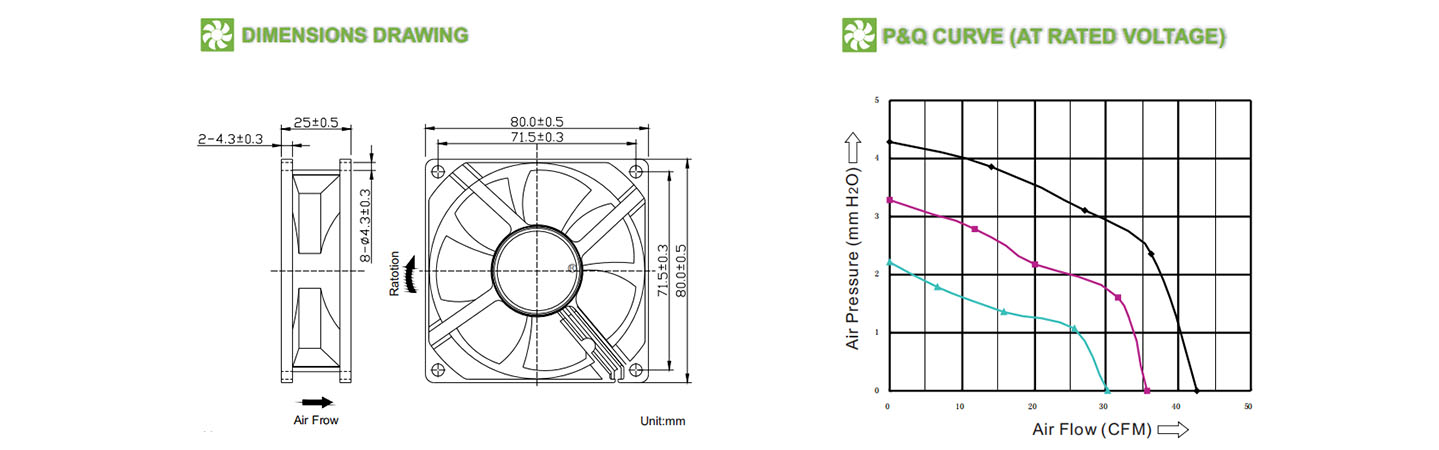

Size: 80*80*25mm
Motor wires: 100% pure copper motor wires
Bearing: Ball or Sleeve
Weight: 78g
Safety: Impedance Protected
Technical characteristics

Item code: EC 8025

Housing: Thermoplastic PBT, UL94V-0

Impeller: Thermoplastic PBT, UL94V-0

Lead Wire: UL 1007 AWG#24

Termination: Lead wire, no connector

Operating Temperature: -10℃ to +70℃ for Sleeve Type
                                                      -20℃ to +80℃ for Ball Type


Performance Parameter
Model Bearing System Rated Voltage Freq. Operation Voltage Rated Current Rated Power Rated Speed Air Flow Air Pressure Noise Level
Ball Sleeve V AC Hz V AC Amp Watt RPM CFM mmH2O dBA

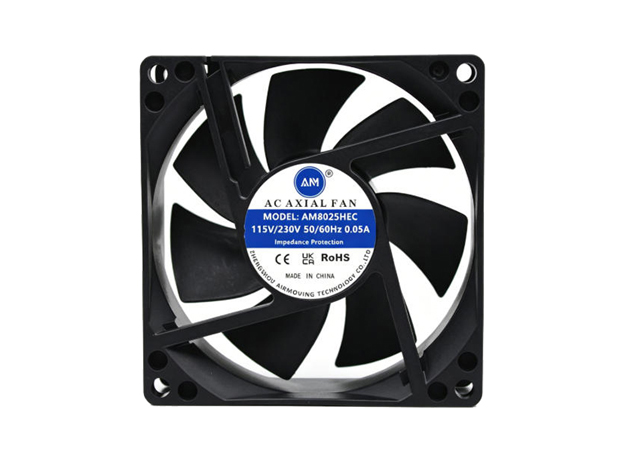

AM8025HEC 115/230 50/60 98-264 0.05 5 3200 42.5 4.3 34
AM8025MEC 0.04 4 2800 35.7 3.3 28
AM8025LEC 0.03 3 2400 30.2 2.2 23
