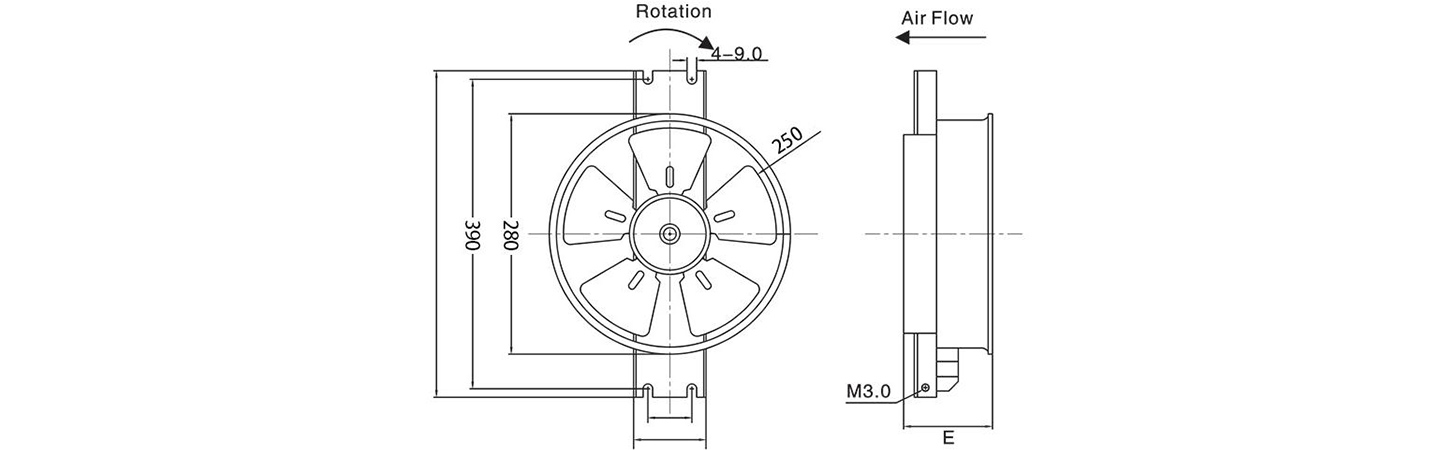

| Size： | Φ250mm |
| Motor wires: | 100% pure copper motor wires |
| Bearing: | Ball |
| Weight: | 2900g |
Item code: AC 250FZY2-D
Housing: Iron, Painted Black
Impeller: Iron, Painted Black
Lead Wire: UL 1007 AWG#22
Termination: Lead wire, no connector
Operating Temperature: -20℃ to +80℃ for Ball Type
| Model | Rated Voltage | Frequency | Rated Current | Imput power W | Rated Speed | Air Flow | Phase No. | Capacitance | Noise Level |
| V AC | Hz | Amp | RPM | M3/hr | dBA | ||||
| AM250FZY2-D | 220V | 50/60 | 0.2 | 40 | 1400/1500 | 840/960 | 1 | 1μF/500V | 55/57 |
| AM250FZY3-D | 380V | 50/60 | 0.1 | 40 | 1400/1500 | 840/960 | 3 | / | 55/57 |
| AM250FZY4-D | 380V | 50/60 | 0.12 | 40 | 1400/1500 | 840/960 | 1 | 1μF/500V | 55/57 |
| AM250FZY6-D | 220V | 50/60 | 0.45 | 100 | 2500/2700 | 1300/1450 | 1 | 2.4μF/450V | 68/70 |
| AM250FZY7-D | 380V | 50/60 | 0.26 | 100 | 2500/2700 | 1300/1450 | 3 | / | 68/70 |
| AM250FZY8-D | 380V | 50/60 | 0.28 | 100 | 2500/2700 | 1300/1450 | 1 | 2μF/450V | 68/70 |
