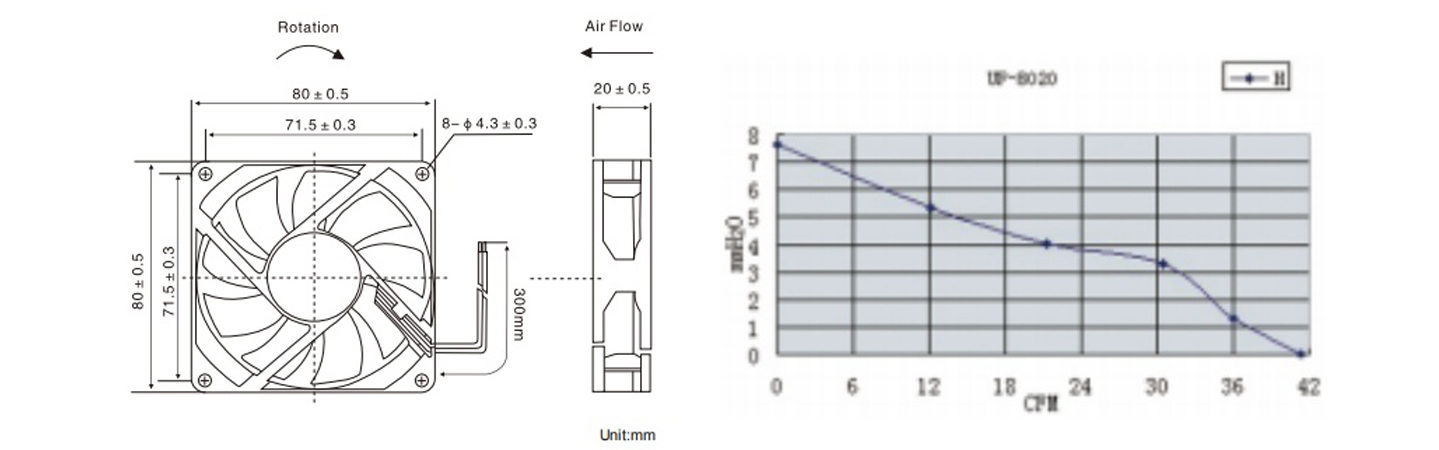

| Size: | 80*80*20mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve |
| Weight: | 60g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Auto restart | |
| 3.Waterproof Level |
Item code: DC8020
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -10℃ to +70℃，35%-85%RH for Sleeve Type
-20℃ to +80℃，35%-85%RH for Ball Type
| Model | Rated Voltage | Operation Voltage | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | Amp | RPM | CFM | MmH2O | dBA | |
| AM8020H12B(S) | 12.0 | 6.0-13.8 | 0.23 | 3500 | 41.3 | 7.61 | 38.0 |
| AM8020M12B(S) | 0.17 | 3000 | 36.3 | 5.35 | 32.0 | ||
| AM8020L12B(S) | 0.13 | 2500 | 30.5 | 4.05 | 26.0 | ||
| AM8020H24B(S) | 24.0 | 12.0-27.0 | 0.21 | 3500 | 41.3 | 7.61 | 38.0 |
| AM8020M24B(S) | 0.14 | 3000 | 36.3 | 5.35 | 32.0 | ||
| AM8020L24B(S) | 0.12 | 2500 | 30.5 | 4.05 | 26.0 |
