| Size: | 92*92*38mm |
| Motor wires: | 100% pure copper motor wires |
| Bearing: | Ball or Sleeve |
| Weight: | 175g |
| Safety: | Impedance Protected |
Item code: EC 9238
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
Termination: Lead wire, no connector
Operating Temperature: -10℃ to +70℃ for Sleeve Type
-20℃ to +80℃ for Ball Type
| Model | Bearing System | Rated Voltage | Freq. | Operation Voltage | Rated Current | Rated Power | Rated Speed | Air Flow | Air Pressure | Noise Level | |
| Ball | Sleeve | V AC | Hz | V AC | Amp | Watt | RPM | CFM | mmH2O | dBA | |

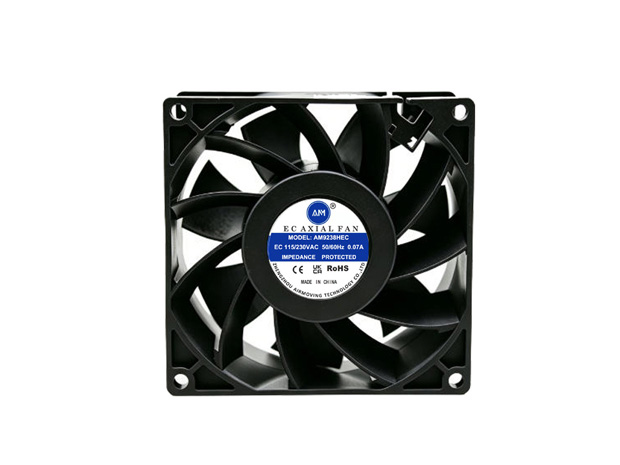

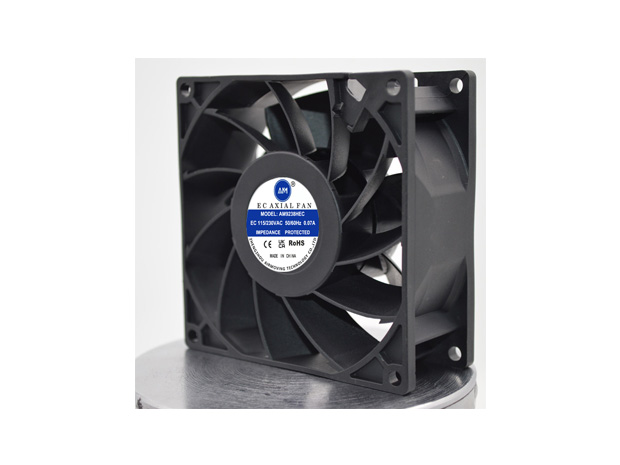

| AM9238HEC | √ | √ | 115/230 | 50/60 | 98-264 | 0.07 | 7 | 3500 | 79.9 | 8.9 | 37 |
| AM9238MEC | √ | √ | 0.05 | 5 | 3000 | 68.5 | 6.8 | 33 | |||
| AM9238LEC | √ | √ | 0.03 | 4 | 2500 | 57.1 | 4.2 | 29 | |||
