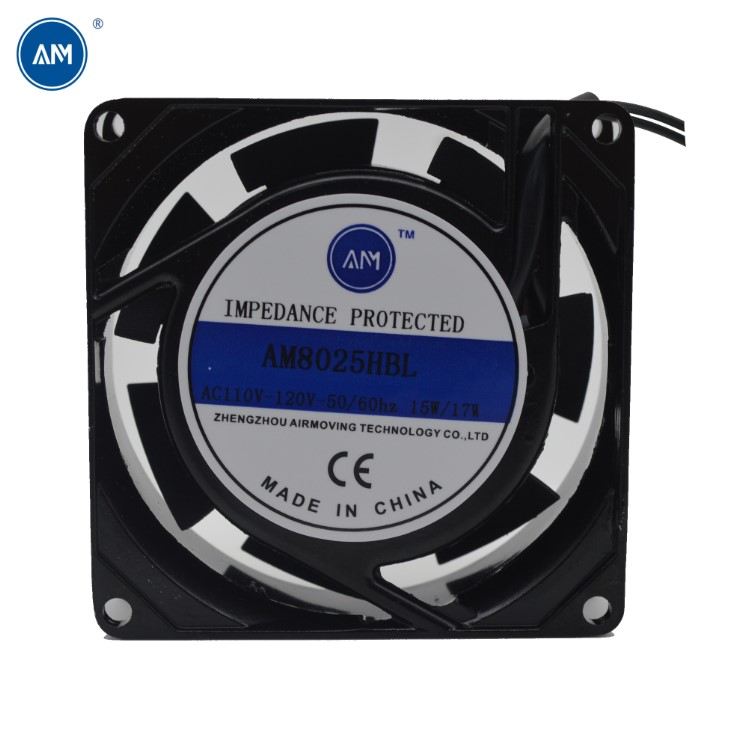

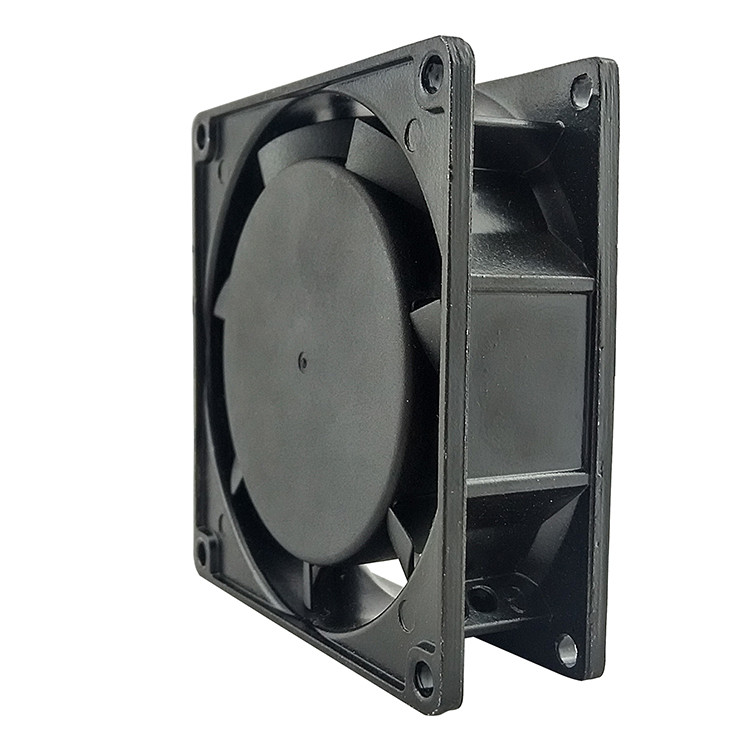

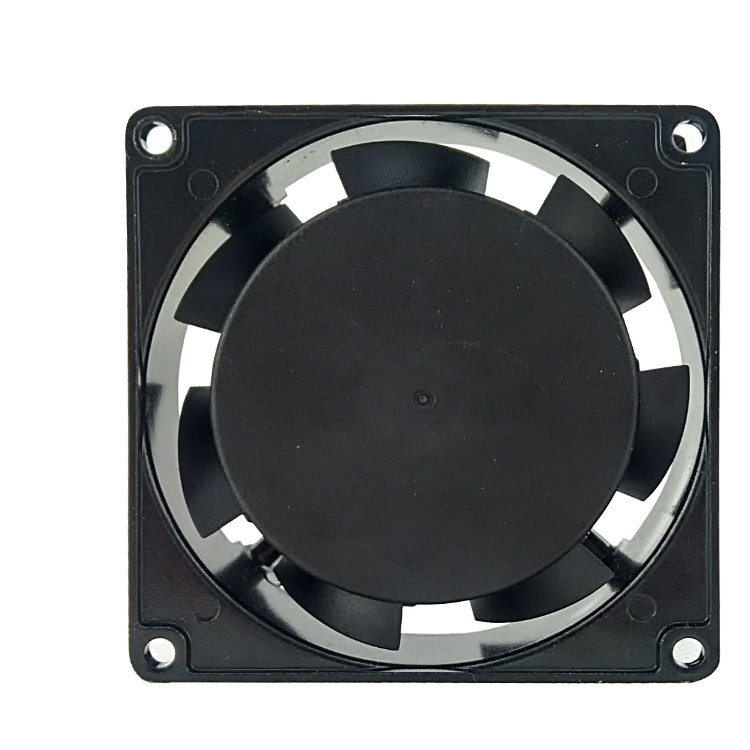

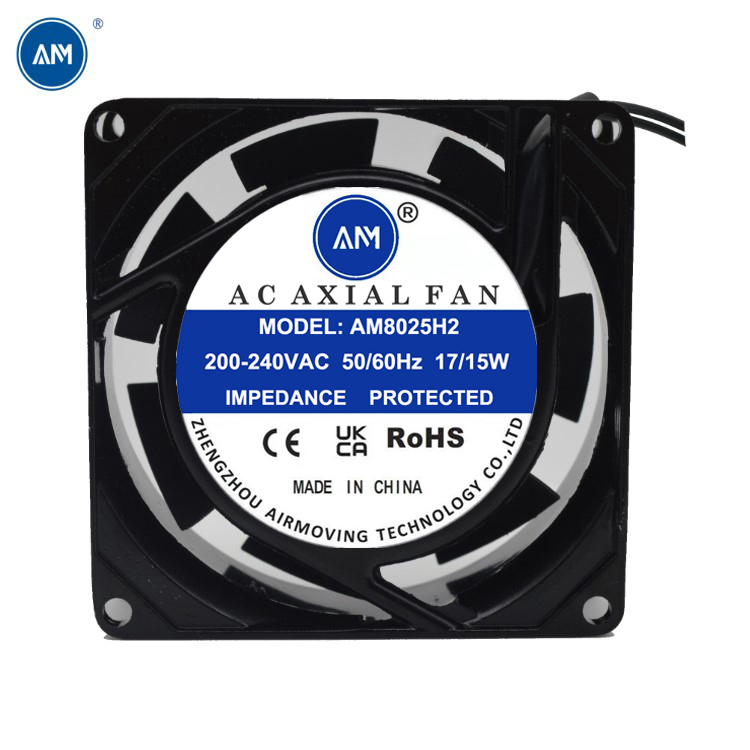

AC 8025

Size: 80*80*25mm
Motor wires: 100% pure copper motor wires
Bearing: Ball or Sleeve
Weight: 230g
Safety: Impedance Protected
Technical characteristics

Housing: Aluminum Alloy, Painted Black

Impeller: Thermoplastic PBT, UL94V-0

Lead Wire: UL 1007 AWG#24,

Termination: Lead wire, no connector

Operating Temperature: -10℃ to +70℃ for Sleeve Type
                                        -20℃ to +80℃ for Ball Type

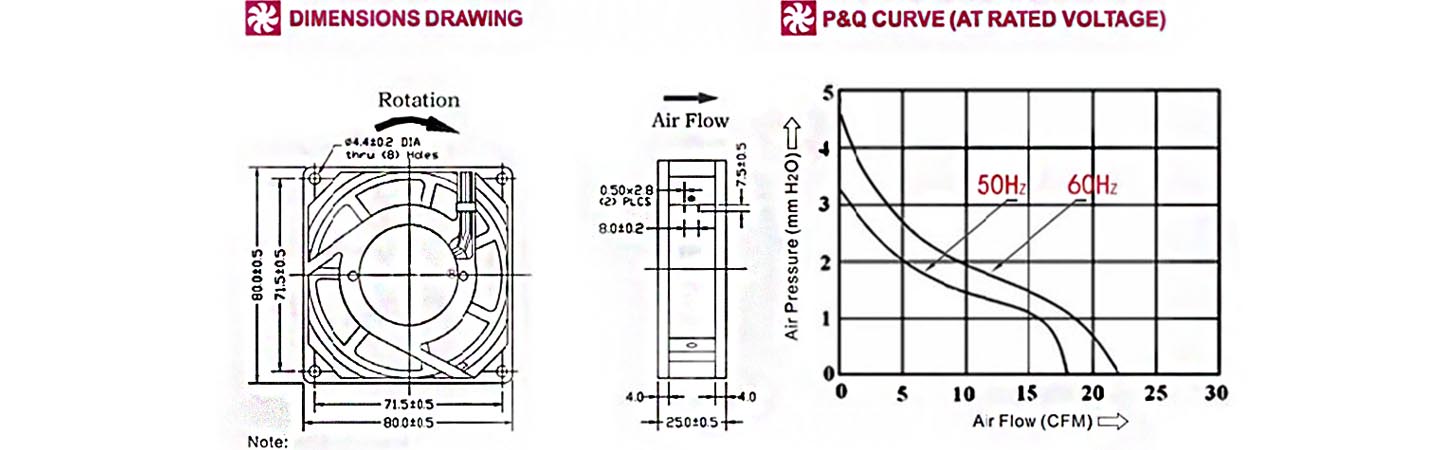

Performance Parameter
Model Bearing System Rated Voltage Frequency Rated Current Rated Input Power Rated Speed Air Flow Air Pressure Noise Level
Ball Sleeve V AC Hz Amp Watt RPM CFM MmH2O dBA
AM8025MS1 110-125 50/60 0.14/0.12 13/11 2300/2500 17/21 3.0/4.6 28/32
AM8025MB1 110-125 50/60 0.14/0.12 13/11 2400/2600 18/22 3.3/4.8 29/33
AM8025MS2 200-240 50/60 0.07/0.06 13/11 2300/2500 17/21 3.0/4.6 28/32
AM8025MB2 200-240 50/60 0.07/0.06 13/11 2400/2600 18/22 3.3/4.8 29/33
